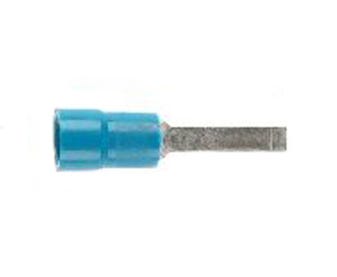

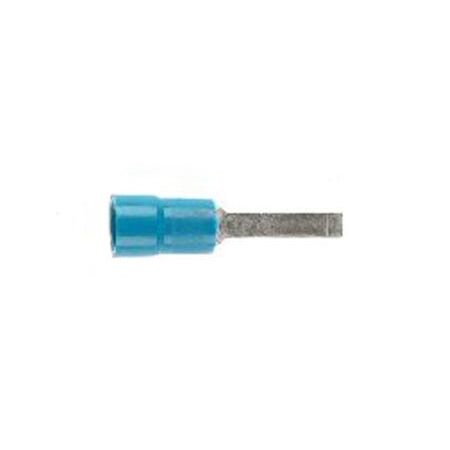

Flat Blade Terminal 2.5mm | 300V Rated | Blue Insulated by Cabac

BRAND: CABAC

SKU: FB2-2.5DG

$17.80 List price: $21.50

+ −

30 Days Return Delivery Options

Flat blade terminal with 2.5mm width and 300V rating—ideal for electrical wiring and connectivity. Built for reliable performance, with blue insulation and funnel entry design for easy conductor insertion.

Description

Product Name/Title: Flat Blade Width 2.5mm Blue Dg

Brand: Cabac

SKU: FB2-2.5DG

Alternatively Known As: Pre-insulated terminal, flat blade terminal, blue insulated terminal, electrical wire terminal, crimp terminal

Technical Specifications

Conductive Material (Quick Connect Range): Brass 30% Zinc, 70% Copper
Tensile Strength: 580 MPa (Quick Connect Range), 200 MPa (Except Quick Connect Range)
Ductile Rating: 6% min (Quick Connect Range), 35% min (Except Quick Connect Range)
Final Metal State: Annealed (Quick Connect Range), Fully Annealed (Except Quick Connect Range)
Working Temperature: -40°C to +105°C (Pre-Insulate), 145°C (Brass), 160°C (Tin plated)
Electroplating: Tin, 99.9% Tin Content, 2.5 microns thickness
Insulation Material: PVC (except nylon 6 or nylon 66 for FIQC)
Breakdown Voltage: 1.5kV (min)
Insulation Resistance: Above 100 meg ohms
Working Voltage: Up to 300V AC/DC
Torque Recommendations: Metric 8.8 tensile grade hardware, torque varies by thread diameter
Nominal Pull Out Force varies by wire size, e.g., 2.5mm wire size pull out force 19.6 kg (192 N)
Dimensions (H x L x W): 5mm x 30mm x 10mm
Weight: 0.1 kg

Key Features

High quality product meeting International Standards
Funnel entry terminals allow easy conductor entry, minimizing substandard crimps
Long term electrical integrity
Voltage rating 300V
Full technical backup including QA
Conforms to AS 3169 and AS 4437

Professional Installation Requirements

Terminals should be crimped onto the conductor with a quality crimper designed for the specific terminal type to ensure proper installation and electrical integrity.

Applications

Electrical wiring and connectivity in switchgear
Contactors and terminal blocks
General electrical installations requiring reliable wire termination

Standards & Compliance

AS/NZS 3123 – Industrial Plugs and Socket-Outlets
AS 3169
AS 4437

Environmental Benefits

Durable materials reduce the need for frequent replacements
High electrical integrity reduces energy loss
PVC insulation designed for long-term use

Warranty Information

Warranty against manufacturing defects as per Cabac standard policy.

Available Now

The Cabac Flat Blade Width 2.5mm Blue DG pre-insulated terminal is available now for immediate purchase. Ideal for electrical wiring and connectivity applications in industrial and commercial settings.
