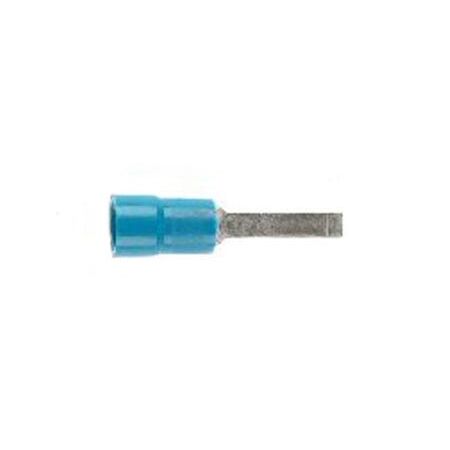

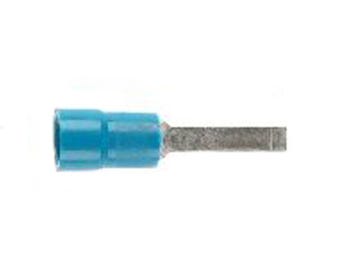

Flat Blade Terminal 2.5mm | Pre-Insulated | Blue by Cabac
Flat blade terminal with 2.5mm width and pre-insulated design—ideal for electrical wiring and connectivity. Built for reliable wire termination, with funnel entry for easy conductor entry and long-term electrical integrity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flat Blade Width 2.5mm Blue
Brand: Cabac
SKU: FB2-2.5
Alternatively Known As: Pre-insulated terminal, Flat blade terminal, Electrical wire terminal, Blue insulated terminal, Crimp terminal 2.5mm
Technical Specifications
- Conductive Material (Quick Connect Range): Brass 30% Zinc, 70% Copper
- Tensile Strength: 580 MPa (Quick Connect Range), 200 MPa (Except Quick Connect Range)
- Ductile Rating: 6% min (Quick Connect Range), 35% min (Except Quick Connect Range)
- Final Metal State: Annealed (Quick Connect Range), Fully Annealed (Except Quick Connect Range)
- Working Temperature: Pre-Insulate -40°C to +105°C, Brass 145°C, Tin plated 160°C
- Electroplating: Tin, 99.9% Tin Content, 2.5 microns thickness
- Insulation Material: PVC (except nylon 6 or nylon 66 for FIQC)
- Breakdown Voltage: 1.5kV (min)
- Insulation Resistance: Above 100 meg ohms
- Working Voltage: Up to 300V AC/DC
- Torque Recommendations: Metric 8.8 tensile grade hardware, torque varies by thread diameter
- Nominal Pull Out Force varies by wire size from 4.6 kg to 35.2 kg
- Dimensions (H x L x W): 5mm x 30mm x 10mm
- Weight: 0.1 kg
Key Features
- High quality product meeting International Standards
- Funnel entry terminals allow easy conductor entry, minimising substandard crimps
- Long term electrical integrity
- Voltage rating 300V
- Full technical back up including QA
- Conforms to AS 3169 and AS 4437
Professional Installation Requirements
- Terminals should be crimped onto the conductor with a quality crimper designed for the specific terminal type to ensure proper installation and electrical integrity.
Applications
- Electrical wiring and connectivity in switchgear
- Contactors and terminal blocks
- General electrical installations requiring reliable wire termination
Standards & Compliance
- AS/NZS 3123 – Industrial Plugs and Socket-Outlets
- AS 3169
- AS 4437
Environmental Benefits
- Durable materials reduce need for frequent replacements
- Conforms to international standards ensuring safe and efficient electrical connections
Warranty Information
Warranty details not specified; typically covered by manufacturer against defects.
Available Now
The Cabac Flat Blade Width 2.5mm Blue pre-insulated terminal is available now for immediate purchase. Ideal for electrical wiring and connectivity applications in residential, commercial, and industrial settings.
