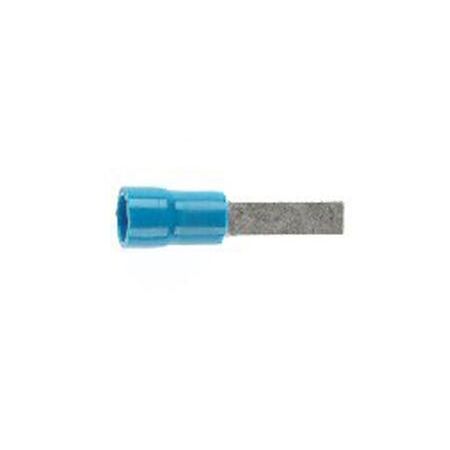

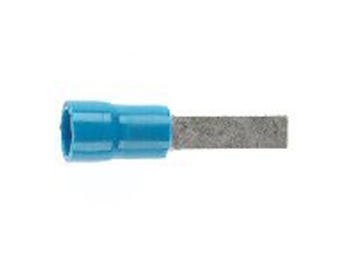

Flat Blade Terminal 3.5mm | Pre-Insulated | 300V Rating | Blue by Cabac
Flat blade terminal with 3.5mm width and pre-insulated design—ideal for electrical wiring and connectivity. Built for reliable connections, with funnel entry for easy conductor insertion and 300V rating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Conductive Material (Quick Connect Range): Brass 30% Zinc, 70% Copper
- Tensile Strength: 580 MPa (Quick Connect Range), 200 MPa (Except Quick Connect Range)
- Ductile Rating: 6% min (Quick Connect Range), 35% min (Except Quick Connect Range)
- Final Metal State: Annealed (Quick Connect Range), Fully Annealed (Except Quick Connect Range)
- Working Temperature: Pre-Insulate -40°C to +105°C, Brass 145°C, Tin plated 160°C
- Electroplating: Tin, 99.9% Tin Content, 2.5 microns thickness
- Insulation Material: PVC (except nylon 6 or nylon 66 for FIQC)
- Breakdown Voltage: 1.5kV (min)
- Insulation Resistance: Above 100 meg ohms
- Working Voltage: Up to 300V AC/DC
- Torque Recommendations: Metric 8.8 tensile grade hardware, torque varies by thread diameter
- Dimensions (H x L x W): 5mm x 30mm x 10mm
- Weight: 0.1 kg
Key Features
- High quality product meeting International Standards
- Funnel entry terminals allow easy conductor entry, minimising substandard crimps
- Long term electrical integrity
- Voltage rating 300V
- Full technical back up including QA
- Conforms to AS 3169 and AS4437
Professional Installation Requirements
- Should be crimped onto the conductor with a quality crimper designed for the specific terminal type by a qualified electrician or technician.
Applications
- Electrical wiring and connectivity in switchgear
- Contactors and terminal blocks
- General electrical installation requiring reliable terminal connections
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce need for frequent replacements
- Halogen-free options available to reduce environmental impact
Warranty Information
Warranty against manufacturing defects as per Cabac standard policy.
Available Now
The Cabac Flat Blade Width 3.5mm Blue DG pre-insulated terminal is available now for immediate purchase. Ideal for electrical wiring and connectivity applications in residential, commercial, and industrial settings.
