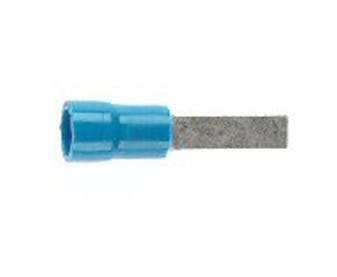

Flat Blade Terminal 3.5mm | Pre-Insulated | Blue | 300V Rating by Cabac
Flat blade terminal with 3.5mm width and pre-insulated design—ideal for electrical wiring and connectivity. Built for secure wire termination, with funnel entry for easy installation and compliance with AS 3169 and AS 4437 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

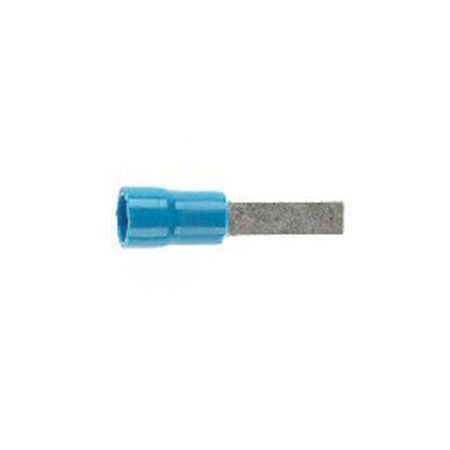

Product Name/Title: Flat Blade Width 3.5mm Blue
Brand: Cabac
SKU: FB2-3.5
Alternatively Known As: Pre-insulated flat blade terminal, 3.5mm blue terminal, electrical wire connector, insulated terminal connector
Technical Specifications
- Conductive Material (Quick Connect Range): Brass 30% Zinc, 70% Copper
- Tensile Strength: 580 MPa (Quick Connect Range), 200 MPa (Except Quick Connect Range)
- Ductile Rating: 6% min (Quick Connect Range), 35% min (Except Quick Connect Range)
- Final Metal State: Annealed (Quick Connect Range), Fully Annealed (Except Quick Connect Range)
- Working Temperature: Pre-Insulate -40°C to +105°C, Brass 145°C, Tin plated 160°C
- Electroplating Material: Tin with 99.9% Tin Content, Plating Thickness 2.5 microns
- Insulation Material: PVC (except nylon 6 or nylon 66 for FIQC)
- Breakdown Voltage: 1.5kV (min)
- Insulation Resistance: Above 100 meg ohms
- Working Voltage: Up to 300V AC/DC
- Total Conductivity: 99.5% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Dimensions (H x L x W): 3mm x 25mm x 10mm
- Weight: 0.1 kg
Key Features
- High quality product meeting International Standards
- Funnel entry terminals allow easy conductor entry, minimising substandard crimps
- Long term electrical integrity
- Voltage rating 300V
- Full technical back up including QA
- Conforms to AS 3169 and AS 4437
Professional Installation Requirements
- Terminals should be crimped onto the conductor with a quality crimper designed for the specific terminal type; professional installation recommended for safety and reliability.
Applications
- Electrical wiring and connectivity in switchgear
- Contactors and terminal blocks
- General electrical and power connectivity applications requiring secure wire termination
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce need for frequent replacements
- High electrical integrity reduces energy loss
- Halogen-free options available to reduce environmental impact
Warranty Information
Warranty details available upon request; product backed by full technical support and quality assurance.
Available Now
The Cabac Flat Blade Width 3.5mm Blue pre-insulated terminal is available now for immediate purchase. Ideal for electrical and power connectivity applications requiring secure and reliable wire termination.
