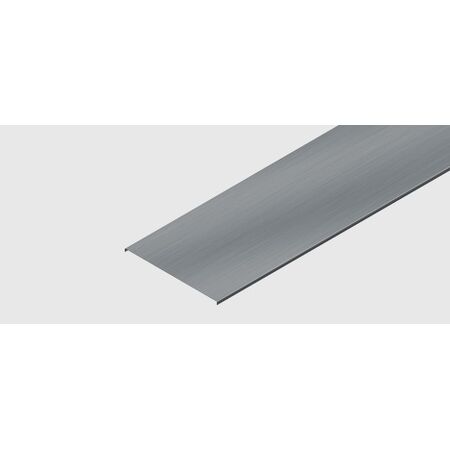

Flat Cable Tray Cover 450mm Grey Ezy Strut
Designed for commercial and industrial cable management, this flat cable tray cover provides dependable protection for cable tray installations. Manufactured from pre-galvanised and hot dip galvanised steel, it features 50mm x 3000mm x 474mm dimensions for compatible tray systems. Complies with AS/NZS 4680 for hot-dip galvanised coatings and is manufactured to AS1397 and ISO1461 standards. View the full specifications below for dimensions, installation requirements, and compliance details.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Pre-Galvanised and Hot Dip Galvanised steel
- Nominal Width: 450mm
- Overall Width: 474mm
- Length: 3000mm
- Dimensions (H x L x W): 50mm x 3000mm x 474mm
- Weight: 2.5 kg
Key Features
- Manufactured from sheet to AS standards.
- Pre-Galvanised to AS1397, ISO1461.
- Hot Dip Galvanised to AS/NZS4680.
Professional Installation Requirements
- Professional installation is recommended for optimal cable management and safety.
Applications
- Industrial: Cable management in factories and warehouses
- Commercial: Office buildings and retail spaces
- General: Any location requiring cable protection and support
Standards & Compliance
- Complies with AS/NZS 4680 for hot-dip galvanized coatings.
Environmental Benefits
- Galvanised materials enhance longevity, reducing the need for replacements and waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The EzyStrut CFET4503G Flat Cover G is available now for immediate purchase. Ideal for industrial and commercial applications requiring effective cable protection.
FAQ
Q: What are the dimensions of this flat cable tray cover?
A: The cover measures 50mm x 3000mm x 474mm (H x L x W) with a nominal width of 450mm.
Q: Where can this flat cable tray cover be used?
A: It is suitable for industrial facilities, warehouses, commercial buildings, retail spaces, and other installations requiring cable protection and support.
Use a cable tray splice plate to create secure joins between tray sections.
Install a cable tray hold down to help keep tray assemblies securely fixed in place.
Pair the installation with an adjustable cable tray support for reliable tray mounting where additional support is needed.
