Trade Discount 21%

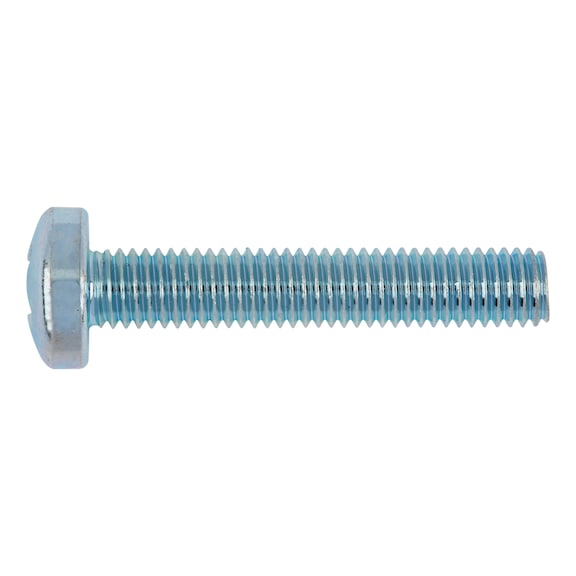

Flat Head Screw ISO 7045 | H Cross Recess | Zinc Plated Blue Passivated | M3x12 | @Pack of 50 | by Wurth
Flat head screws ISO 7045 with H cross recess and zinc plated blue passivated finish are perfect for general mechanical fastening and electronics assembly. Designed for durability, these M3 screws ensure secure fastening in automotive repairs and industrial machinery applications, making them ideal for both professionals and DIY enthusiasts.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flat Head Screw ISO 7045 | H Cross Recess | Zinc Plated Blue Passivated | M3x12 | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 5103003012
Alternatively Known As: Flat head cross recess screw, ISO 7045 screw, Zinc plated pan head screw, Metric M3 screw, H1 drive screw

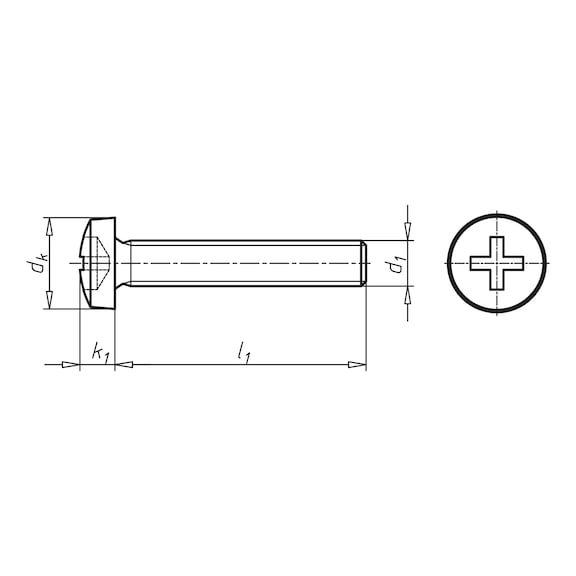

Technical Specifications
- Thread type x nominal diameter: M3
- Length: 12 mm
- Head diameter: 5.6 mm
- Head height: 2.4 mm
- Standards: ISO 7045
- Material: Steel
- Property class: 4.8
- Surface: Zinc plated blue passivated
- RoHS-compliant: Yes
- Head type: Flat head
- Drive type: Crosshead
- Internal drive: H1
- Thread type: Metric thread
- Pitch: 0.5 mm
- Thread form: Standard metric thread
- Product class: A
- Dimensions (H x L x W): 2.4mm x 12mm x 5.6mm
- Weight: 0.005 kg
Key Features
- Replaces DIN 7985 standard screws
- Flat head design with H cross recess for secure drive
- Steel material with zinc plated blue passivated surface for corrosion resistance
- Metric thread M3 with 0.5 mm pitch
- RoHS-compliant
Professional Installation Requirements
- Installation by a qualified technician or tradesperson recommended to ensure proper fastening and safety.
Applications
- General mechanical fastening
- Electronics assembly
- Automotive repairs
- Industrial machinery
- Furniture assembly
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Zinc plating provides corrosion resistance extending product life and reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Available for immediate purchase, ideal for mechanical and industrial fastening applications.
