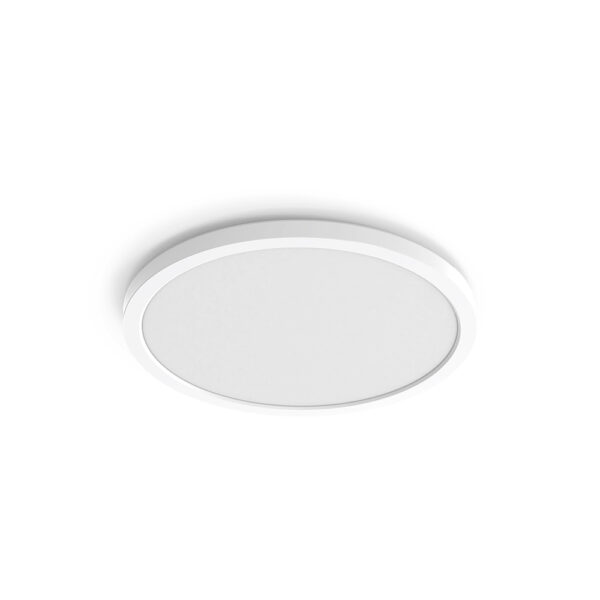

24W Flat Low-Profile Oyster Light | Tri-CCT | IP54 Rated | Dimmable | by atom
The 24W Flat Low-Profile Oyster Light is designed for versatile indoor lighting, featuring a Tri-CCT configuration with warm white, cool white, and daylight options. With an IP54 rating for dust and water protection, this dimmable LED light is perfect for both residential and commercial spaces, ensuring energy efficiency and a long lifespan of over 54,000 hours.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Flat Oyster Light, Low Profile LED Ceiling Light, Tri-CCT LED Panel Light, 400mm LED Oyster Light
Technical Specifications
- Total System Efficiency: up to 120 lm/W
- Input Voltage: 230V
- Input Frequency: 50 Hz
- Maximum Wattage: 24W
- Colour Rendering Index (CRI): >80
- Colour Temperature Options: 3000K, 4000K, 5700K
- LED Lifetime: >54,000 hours
- IP Rating: IP54
- Working Temperature Range: -20 to 40 °C
- Dimmable: Yes
- Dimensions (H x L x W): 50mm x 400mm x 400mm
- Weight: 1.2 kg
Key Features
- Tri-CCT configuration with warm white (3000K), cool white (4000K), and daylight (5700K) options
- Dimmable LED driver for adjustable lighting levels
- IP54 rated for protection against dust and water splashes
- Long LED lifetime of over 54,000 hours based on TM-21
- Flat low-profile design with 400mm diameter in white finish
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and optimal performance.
Applications
- Wall or ceiling installation in residential and commercial spaces
- Suitable for indoor lighting requiring adjustable colour temperature
- Ideal for energy-efficient lighting solutions in offices, homes, and retail environments
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.1 – Fixed General Purpose Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for D.C. or A.C. Supplied Electronic Control Gear for LED Modules
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance Characteristics of Electrical Lighting and Similar Equipment
Environmental Benefits
- High system efficiency up to 120 lm/W reduces energy consumption
- Long LED lifetime minimizes waste and replacement frequency
- Dimmable feature allows for energy savings by adjusting light output
Warranty Information
Standard warranty of 3 years return-to-base. VIP warranty offers 2 years onsite plus 3 years return-to-base (total 5 years) for registered users in defined regions.
Available Now
The Atom 24W Flat Low-Profile Oyster 400mm Dia Tri-CCT White light is available for immediate purchase, ideal for residential and commercial indoor lighting applications.
