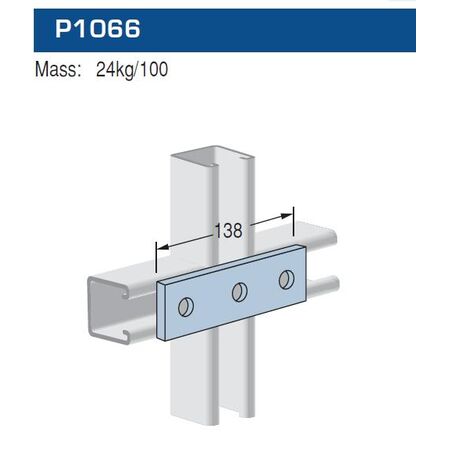

Flat Plate Fitting 14mm 3-Hole Hot-Dip Galvanised Unistrut
Unistrut hot-dip galvanised 3-hole flat plate fitting, 14mm, for strut channel assemblies.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Punch press formed plate steel
- Finish: Hot dipped galvanised to AS/NZS 4680
- Hole Size: 14mm diameter
- Hole Spacing: 21mm from end, 48mm on centre
- Width: 40mm
- Thickness: 6mm
- Mass: 24 kg per 100 pieces
- Dimensions (H x L x W): 16 mm x 50 mm x 50 mm
- Weight: 0.24 kg
Key Features
- Punch press formed from plate steel
- Hot dipped galvanised finish to AS/NZS 4680 for corrosion resistance
- 14mm diameter holes compatible with M12 x 24 hex head set screws and M12 nuts
- Design load data based on ultimate strength with safety factor of 2.5
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with structural steel fittings and appropriate fastening methods.
Applications
- Structural connections in steel framing and construction
- General purpose fittings for channel and plate steel assemblies
- Suitable for use with 41mm square members and similar profiles
Standards & Compliance
- Complies with AS/NZS 4680 – Hot Dip Galvanized Coatings on Fabricated Ferrous Articles
Environmental Benefits
- Hot dipped galvanised finish extends product life reducing replacement frequency
- Steel is recyclable, supporting sustainable construction practices
Warranty Information
Warranty details available upon request; typically covers manufacturing defects.
Available Now
The Flat Plate Fitting Hot Dipped Galvanised with 14mm Hole is available now for immediate purchase. Ideal for structural steel assembly and general fitting applications.
