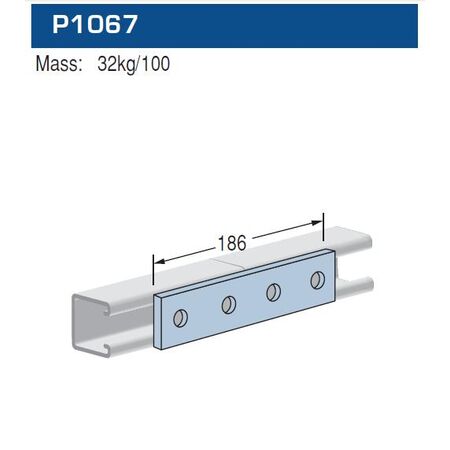

Flat Plate Fitting 14mm 4-Hole Hot-Dip Galvanised Unistrut
Unistrut hot-dip galvanised 4-hole flat plate fitting, 14mm, for strut channel assemblies.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Punch press formed plate steel
- Finish: Hot dipped galvanised to AS/NZS 4680
- Hole Diameter: 14mm
- Hole Spacing: 21mm from end, 48mm on centre
- Width: 40mm
- Thickness: 6mm
- Mass: 32 kg per 100 pieces
- Dimensions (H x L x W): 16 mm x 100 mm x 50 mm
- Weight: 0.32 kg
Key Features
- Punch press formed from plate steel for durability
- Hot dipped galvanised finish to AS/NZS 4680 for corrosion resistance
- 14mm diameter holes compatible with M12 x 24 hex head set screws and M12 nuts
- Hole spacing: 21mm from end, 48mm on centre
- Thickness of 6mm and width of 40mm for robust structural support
Professional Installation Requirements
- Installation requires appropriate tools and fasteners; professional installation recommended for structural safety and compliance.
Applications
- Structural connections in construction and building frameworks
- General purpose steel fitting for assembly of channels and frames
- Suitable for use with 41mm square members and similar structural elements
Standards & Compliance
- Complies with AS/NZS 4680 – Hot Dipped Galvanised Coatings on Fabricated Ferrous Articles
Environmental Benefits
- Hot dipped galvanised finish extends product life reducing need for frequent replacements
- Steel is recyclable, supporting sustainable construction practices
Warranty Information
Warranty details available upon request; typically includes coverage against manufacturing defects.
Available Now
The Flat Plate Fitting Hot Dipped Galvanised with 14mm Holes is available now for immediate purchase. Ideal for construction and structural assembly applications.
