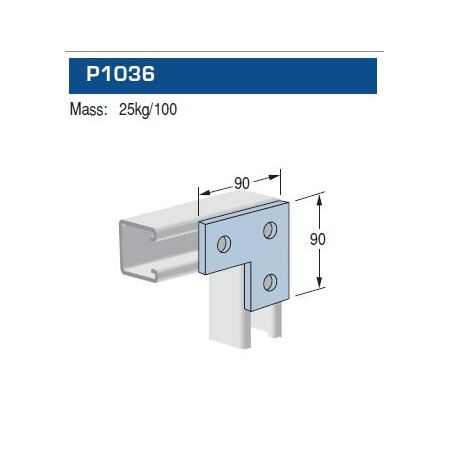

Flat Plate Fitting 90x90 | Hot Dipped Galvanised | 14mm Holes

SKU: P1036H

$7.10 List price: $9.20

+ −

30 Days Return Delivery Options

Flat plate fitting with 90x90 dimensions and 14mm diameter holes—ideal for structural applications. Built for durability, with hot dipped galvanised finish for corrosion resistance.

Description

Product Name/Title: Flat Plate Fitting 90x90 | Hot Dipped Galvanised | 14mm Holes

SKU: P1036H

Alternatively Known As: Steel Flat Plate Connector, Galvanised Steel Plate Fitting, 90 Degree Steel Plate, Structural Steel Plate Connector

Technical Specifications

Material: Punch press formed plate steel
Finish: Hot dipped galvanised to AS/NZS 4680
Hole Diameter: 14mm
Hole Spacing: 21mm from end, 48mm on centre
Width: 40mm
Thickness: 6mm
Compatible with M12 x 24 hex head set screws and M12 nuts (not included)
Dimensions (H x L x W): 90mm x 6mm x 90mm
Weight: 1.5 kg

Key Features

Made from punch press formed plate steel
Hot dipped galvanised finish to AS/NZS 4680 for corrosion resistance
14mm diameter holes compatible with M12 x 24 hex head set screws and M12 nuts
Hole spacing: 21mm from end, 48mm on centre
Thickness: 6mm, Width: 40mm

Professional Installation Requirements

Installation should be performed by qualified personnel familiar with structural steel fittings and appropriate fastening methods.

Applications

Structural connections in steel framing
Support and bracing in construction projects
General purpose steel fitting for industrial and commercial use

Standards & Compliance

Complies with AS/NZS 4680 for Hot Dipped Galvanised Coatings on Fabricated Ferrous Articles

Environmental Benefits

Hot dipped galvanised coating provides long-lasting corrosion protection, reducing the need for frequent replacements and minimizing waste.

Warranty Information

Warranty against manufacturing defects as per supplier standard terms.

Available Now

The Flat Plate Fitting 90x90 Hot Dipped Galvanised with 14mm Holes is available now for immediate purchase. Ideal for structural steel framing and general construction applications.
