Trade Discount 23%

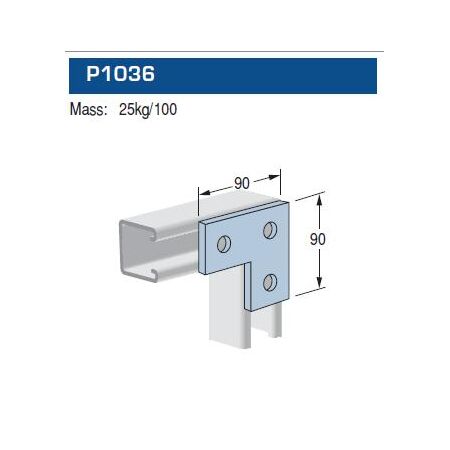

Flat Plate Fitting 90x90mm Hot-Dip Galvanised Unistrut
Unistrut hot-dip galvanised flat plate fitting, 90x90mm, for strut channel assemblies.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Punch press formed plate steel
- Finish: Hot dipped galvanised to AS/NZS 4680
- Hole Diameter: 14mm
- Hole Spacing: 21mm from end, 48mm on centre
- Width: 40mm
- Thickness: 6mm
- Compatible with M12 x 24 hex head set screws and M12 nuts (not included)
- Dimensions (H x L x W): 90mm x 6mm x 90mm
- Weight: 1.5 kg
Key Features
- Made from punch press formed plate steel
- Hot dipped galvanised finish to AS/NZS 4680 for corrosion resistance
- 14mm diameter holes compatible with M12 x 24 hex head set screws and M12 nuts
- Hole spacing: 21mm from end, 48mm on centre
- Thickness: 6mm, Width: 40mm
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with structural steel fittings and appropriate fastening methods.
Applications
- Structural connections in steel framing
- Support and bracing in construction projects
- General purpose steel fitting for industrial and commercial use
Standards & Compliance
- Complies with AS/NZS 4680 for Hot Dipped Galvanised Coatings on Fabricated Ferrous Articles
Environmental Benefits
- Hot dipped galvanised coating provides long-lasting corrosion protection, reducing the need for frequent replacements and minimizing waste.
Warranty Information
Warranty against manufacturing defects as per supplier standard terms.
Available Now
The Flat Plate Fitting 90x90 Hot Dipped Galvanised with 14mm Holes is available now for immediate purchase. Ideal for structural steel framing and general construction applications.
