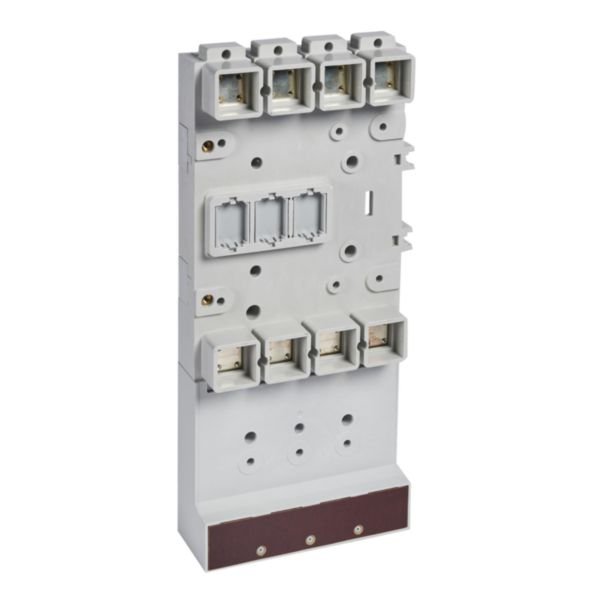

Flat Rear Terminal Mounting Base for DPX³ | 4 Pole Design | Earth Leakage Module Support | Plug-in Version | @Each of 1 | by Legrand

BRAND: Legrand
SKU: 422227
$4,525.60 List price: $5,639.60
1 EA ($4,525.60 per EA)
+ −
30 Days Return Delivery Options
The Flat Rear Terminal Mounting Base for DPX³ is designed specifically for 4 pole configurations, supporting earth leakage modules for enhanced safety. Ideal for electrical switchboards and power cabinets, this plug-in version features special terminals for easy installation, ensuring compliance with electrical standards. Perfect for industrial and commercial electrical distribution systems.
Technical Specifications
  • Compatible with DPX³ 630 series circuit breakers
  • Plug-in version with special terminals
  • 4 pole flat rear terminal mounting base
  • Supports earth leakage modules
  • Bolt connection for main circuit
  • Can be used as busbar adaptor or built-in device
  • Dimensions (H x L x W): 120mm x 200mm x 150mm
  • Weight: 3.5 kg
Key Features
  • Designed specifically for DPX³ 630 series with earth leakage modules
  • Plug-in version with special terminals for easy installation
  • Flat rear terminal mounting base for 4 poles
  • Supports bolt connection for main circuit electrical connection
  • Can be used as busbar adaptor or built-in device
Professional Installation Requirements
  • Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration with DPX³ circuit breakers.
Applications
  • Electrical switchboards and power cabinets
  • Modular switches and circuit breakers installations
  • Industrial and commercial electrical distribution systems
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Supports modular electrical systems that improve energy management and reduce waste
  • Durable design reduces need for frequent replacements
Warranty Information

Legrand standard warranty applies, typically 1 year against manufacturing defects.

Available Now

Available for immediate purchase, ideal for use in electrical switchboards and power cabinet installations requiring earth leakage protection.

LE07960AB (LE07960AB.pdf, 4,727 Kb) [Download]

Technical Guide: Coordination between protection devices (EXB15015_TG_Coordination_EN.pdf, 25,131 Kb) [Download]

ex223001_0179 (ex223001_0179.pdf, 81 Kb) [Download]
