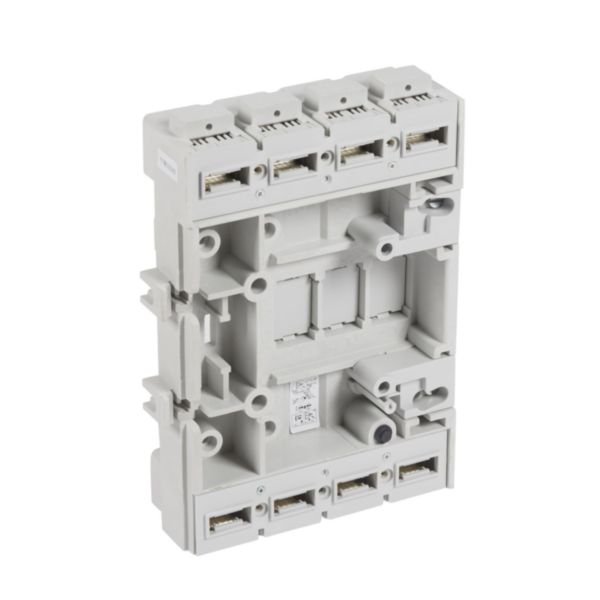

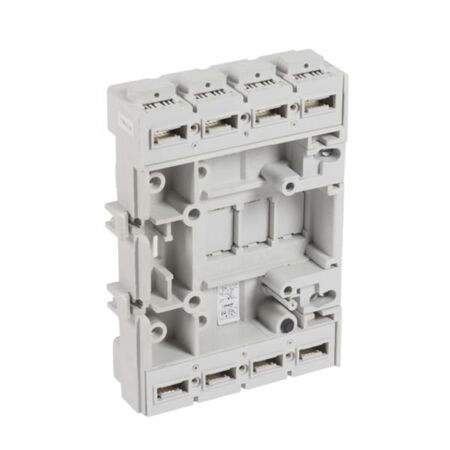

Flat Rear Terminal Mounting Base for DPX³ | Plug-in Version | Bolt Connection | by Legrand
The Flat Rear Terminal Mounting Base for DPX³ is designed specifically for DPX³ 630 series circuit breakers, featuring a plug-in version with special terminals for easy installation. Ideal for electrical switchboards and modular circuit breaker installations, this base ensures secure bolt connections and can be used as a busbar adaptor or built-in device, making it perfect for industrial and commercial electrical distribution systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flat Rear Terminal Mounting Base for DPX³ | Plug-in Version | Bolt Connection | by Legrand
Brand: Legrand
SKU: 422225
Alternatively Known As: DPX3 Flat Rear Terminal Base, DPX³ 4P Mounting Base, Legrand DPX³ Mounting Base
Technical Specifications
- Compatible with DPX³ 630 series circuit breakers
- Plug-in version with special terminals
- Flat rear terminal mounting base
- Bolt connection for main circuit electrical connection
- Can be used as busbar adaptor or built-in device
- Dimensions (H x L x W): 100mm x 200mm x 150mm
- Weight: 2.5 kg
Key Features
- Designed specifically for DPX³ 630 series circuit breakers
- Plug-in version with special terminals for easy installation
- Flat rear terminal mounting base for secure bolt connection
- Compatible with DPX³ and DPX³-I models fitted with special terminals
- Can be used as busbar adaptor or built-in device
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper connection.
Applications
- Electrical switchboards and power cabinets
- Modular switches and circuit breakers installations
- Industrial and commercial electrical distribution systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Supports modular electrical systems that reduce material waste
- Durable design extends product lifecycle, reducing replacement frequency
Warranty Information
Legrand offers a standard 2-year warranty covering manufacturing defects.
Available Now
The Legrand Flat Rear Terminal Mounting Base for DPX³ 4P is available for immediate purchase, ideal for use in electrical switchboards and modular circuit breaker installations.
