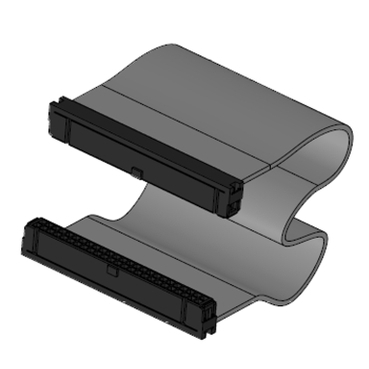

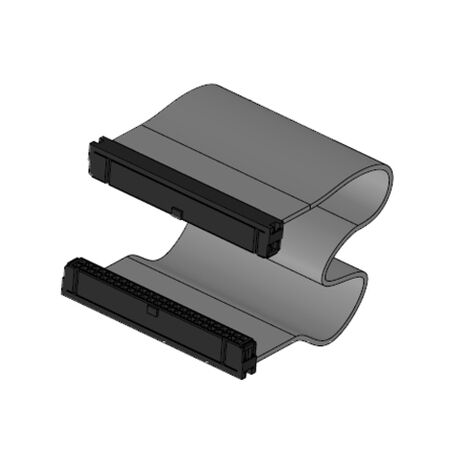

Flat Ribbon Cable | 20-Way | 1.27mm Pitch | PVC Insulation | @Quantity of 1 | by Clipsal
Flat Ribbon Cable designed for organized wiring with 20 ways and a 1.27mm pitch, making it compatible with standard IDC connectors. Ideal for internal wiring, data transfer, and signal transmission in electronic devices and industrial applications. With durable PVC insulation, this cable ensures long-lasting performance and flexibility in tight spaces.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flat Ribbon Cable | 20-Way | 1.27mm Pitch | PVC Insulation | @Quantity of 1 | by Clipsal
Brand: Clipsal
SKU: SCHCBL020
Alternatively Known As: 20-way flat ribbon cable, IDC ribbon cable, 1.27mm pitch ribbon cable, SCHCBL020, flat cable for electronics
Technical Specifications
- Number of Ways: 20
- Pitch: 1.27mm
- Conductor Material: Tinned copper
- Insulation Material: PVC
- Voltage Rating: 300V
- Operating Temperature: -20°C to +105°C
- Flame Retardant: Yes
- Length: 1 meter
- Dimensions (H x L x W): 2mm x 1000mm x 25mm
- Weight: 0.15 kg
Key Features
- 20-way flat ribbon cable for organized and efficient wiring
- 1.27mm pitch for compatibility with standard IDC connectors
- Flexible and easy to route in tight spaces
- Durable PVC insulation for long-lasting performance
Professional Installation Requirements
- Installation should be performed by a qualified technician to ensure correct termination and compliance with electrical safety standards.
Applications
- Internal wiring for electronic devices
- Data transfer between PCBs in control panels
- Signal transmission in computers, printers, and industrial equipment
- Suitable for use in telecommunications and automation systems
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Reduces material waste by enabling organized and efficient wiring
- Supports repair and reuse of electronic devices, extending product life
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal SCHCBL020 Flat Ribbon Cable is available for immediate purchase. Ideal for internal wiring, data transfer, and signal transmission in electronic and industrial applications.
