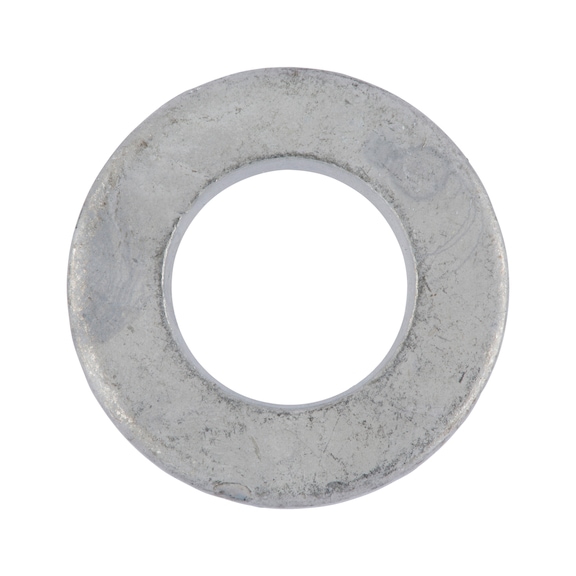

Flat Washer DIN 125 for Hexagon Head Bolts | Hot-Dip Galvanised Steel | Hardness Class 140 HV | @Pack of 25 | by Wurth
Flat Washer DIN 125 for Hexagon Head Bolts offers a hot-dip galvanized steel surface for superior corrosion resistance and a hardness class of 140 HV for enhanced durability. Perfect for construction and mechanical applications, this washer ensures secure fastening with hexagon head bolts and nuts, making it an essential component for structural integrity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flat Washer DIN 125 for Hexagon Head Bolts | Hot-Dip Galvanised Steel | Hardness Class 140 HV | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 40700020
Alternatively Known As: Flat washer, Hex bolt washer, Galvanised flat washer, DIN 125 washer
Technical Specifications
- Suitable for screw thread: M20
- Form: B
- Internal diameter (d1): 21 mm
- Outer diameter (d2): 37 mm
- Thickness (h1): 3 mm
- Standards: DIN 125
- Material: Steel
- Vickers hardness: 140 HV
- Surface: Hot dip galvanized
- RoHS-compliant: Yes
- Dimensions (H x L x W): 3mm x 37mm x 37mm
- Weight: 0.05 kg
Key Features
- Hot-dip galvanized steel surface for corrosion resistance
- Hardness class 140 HV for durability
- Complies with DIN 125 standard
- RoHS-compliant material
Professional Installation Requirements
- Installation by a qualified tradesperson or engineer is recommended to ensure proper fastening and compliance with structural standards.
Applications
- Used with hexagon head bolts and nuts for secure fastening in construction and machinery
- Suitable for structural and mechanical applications requiring corrosion resistance
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Hot-dip galvanizing extends product life reducing waste and replacement frequency
- RoHS compliance ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Flat Washer DIN 125 is available for immediate purchase, ideal for construction, mechanical, and structural fastening applications.
