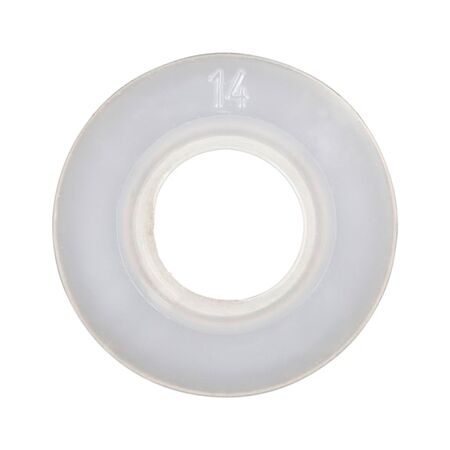

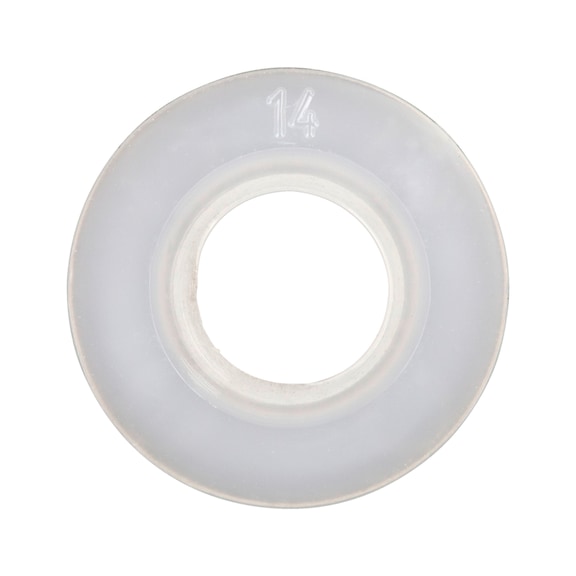

Flat Washer DIN 125 for Hexagon Head Bolts | PA 6.6 Polyamide | Oil & Alkaline Resistant | @Pack of 100 | by Wurth
Flat Washer DIN 125 for Hexagon Head Bolts made from durable PA 6.6 Polyamide, offering resistance to oils and alkaline solutions. Ideal for mechanical and industrial assembly, these washers ensure secure fastening in various applications. With a thermally stable range from -40°C to +150°C, they are perfect for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flat Washer DIN 125 for Hexagon Head Bolts | PA 6.6 Polyamide | Oil & Alkaline Resistant | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 4210010
Alternatively Known As: Polyamide Flat Washer, Nylon Washer, DIN 125 Washer, Hex Bolt Washer
Technical Specifications
- Suitable for screw thread: M10
- Form: A
- Internal diameter (d1): 10.5 mm
- Outer diameter (d2): 20 mm
- Thickness (h1): 2 mm
- Material: PA 6.6 - Polyamide
- Surface: Plain
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2mm x 20mm x 20mm
- Weight: 0.02 kg
Key Features
- Resistant to mineral oils, petrol, and weak alkaline solutions
- Thermally stable from –40°C to +150°C
- Made from durable PA 6.6 Polyamide material
- Plain surface finish
- RoHS-compliant
Professional Installation Requirements
- No special professional installation required; suitable for standard mechanical assembly.
Applications
- Used with hexagon head bolts and nuts for secure fastening
- Suitable for mechanical and industrial assembly
- Ideal for applications requiring resistance to oils and alkaline solutions
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material ensures reduced hazardous substances
- Durable polyamide construction extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies.
Available Now
Wurth Flat Washer DIN 125 Polyamide 100 PCS is available now for immediate purchase. Ideal for industrial, mechanical, and construction fastening applications.
