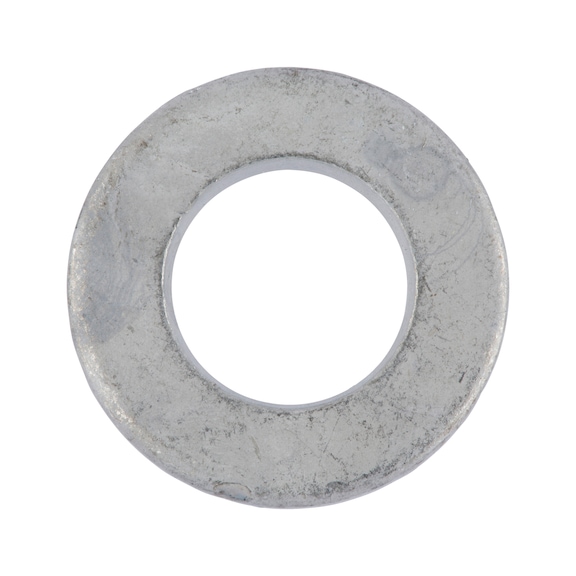

Flat Washer for Hexagon Head Bolts DIN 125 | Hot-Dip Galvanised Steel | 140 HV Hardness | @Pack of 25 | by Wurth
Flat washers for hexagon head bolts DIN 125 are crafted from hot-dip galvanised steel, ensuring exceptional corrosion resistance and durability with a Vickers hardness of 140 HV. Perfect for construction and mechanical applications, these washers provide secure fastening for M30 screw threads, making them ideal for structural integrity in various projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flat Washer for Hexagon Head Bolts DIN 125 | Hot-Dip Galvanised Steel | 140 HV Hardness | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 40700030
Alternatively Known As: Flat washer, Hex bolt washer, Galvanised washer, DIN 125 washer, Steel flat washer
Technical Specifications
- Suitable for screw thread: M30
- Form: B
- Internal diameter (d1): 31 mm
- Outer diameter (d2): 56 mm
- Thickness (h1): 4 mm
- Standards: DIN 125
- Material: Steel
- Vickers hardness: 140 HV
- Surface: Hot dip galvanized
- RoHS-compliant: Yes
- Dimensions (H x L x W): 4mm x 56mm x 56mm
- Weight: 0.05 kg
Key Features
- Hot-dip galvanised steel surface for enhanced corrosion resistance
- Complies with DIN 125 standard
- Vickers hardness of 140 HV for durability
- Suitable for screw thread size M30
- Form B shape with internal diameter 31 mm and outer diameter 56 mm
Professional Installation Requirements
- Installation by a qualified tradesperson or engineer recommended to ensure proper fastening and structural integrity.
Applications
- Used with hexagon head bolts and nuts for secure fastening in construction and machinery
- Suitable for structural and mechanical applications requiring corrosion resistance
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Hot-dip galvanising provides long-lasting corrosion protection reducing the need for frequent replacements
- RoHS-compliant material ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies.
Available Now
Available for immediate purchase, ideal for construction, mechanical, and structural fastening applications.
