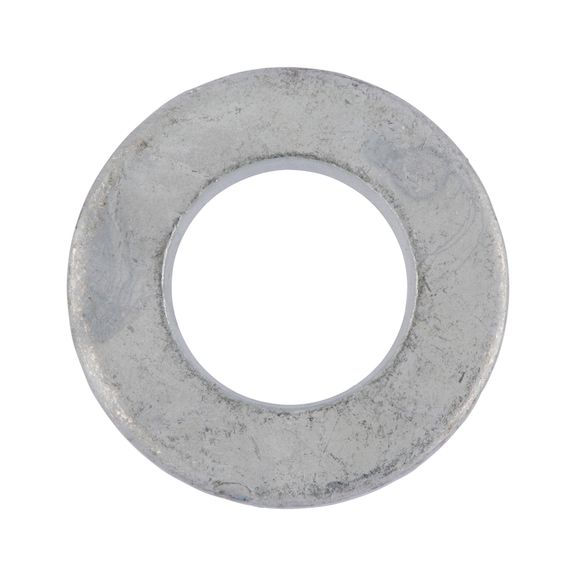

Flat Washer for Hexagon Head Bolts DIN 125 | Hot-Dip Galvanised Steel | Hardness Class 140 HV | @Pack of 50 | by Wurth
Flat washers for hexagon head bolts DIN 125 are crafted from hot-dip galvanised steel, ensuring superior corrosion resistance and durability with a hardness class of 140 HV. Perfect for construction and machinery applications, these washers provide secure fastening and comply with RoHS standards for environmental safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flat Washer for Hexagon Head Bolts DIN 125 | Hot-Dip Galvanised Steel | Hardness Class 140 HV | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 4070008
Alternatively Known As: Flat washer, Hex bolt washer, Galvanised washer, DIN 125 washer, Steel flat washer
Technical Specifications
- Suitable for screw thread: M8
- Form: A
- Internal diameter (d1): 8.4 mm
- Outer diameter (d2): 16 mm
- Thickness (h1): 1.6 mm
- Material: Steel
- Vickers hardness: 140 HV
- Surface finish: Hot dip galvanized
- RoHS-compliant: Yes
- Dimensions (H x L x W): 1.6mm x 16mm x 16mm
- Weight: 0.02 kg
Key Features
- Hot-dip galvanised steel surface for enhanced corrosion resistance
- Hardness class 140 HV for durability
- Complies with DIN 125 standard
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper fastening and compliance with structural standards.
Applications
- Used with hexagon head bolts and nuts for secure fastening in construction and machinery
- Suitable for structural and mechanical applications requiring corrosion resistance
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Hot-dip galvanising provides long-lasting corrosion protection reducing replacement frequency
- RoHS compliance ensures the product is free from hazardous substances
Warranty Information
Warranty against manufacturing defects as per Wurth standard policy.
Available Now
Available for immediate purchase, ideal for construction, mechanical, and structural fastening applications.
