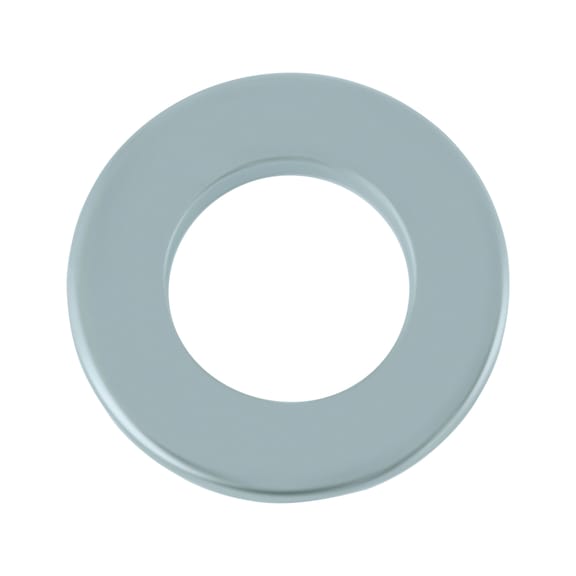

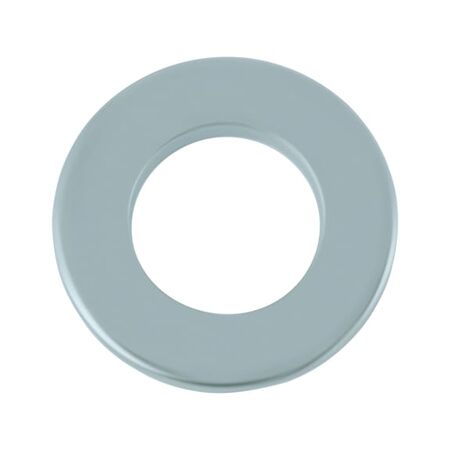

Flat Washer Zinc Plated Steel | Grade 8 Strength | Heat Treated | @Pack of 5 | by Wurth
Flat washers made from heat treated steel with Grade 8 strength and a zinc plated surface for corrosion resistance. Ideal for mechanical assemblies and industrial fastening applications, these washers ensure proper load distribution and comply with ASME B18.21.1 standards. Perfect for use with 1 inch screw threads, they are designed for durability and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flat Washer Zinc Plated Steel | Grade 8 Strength | Heat Treated | @Pack of 5 | by Wurth
Brand: Wurth
SKU: 1902509579
Alternatively Known As: Flat washer, USS flat washer, Zinc plated washer, Grade 8 washer, Steel flat washer
Technical Specifications
- Internal diameter: 11/16 inch (17.46 mm)
- Outer diameter: 2 inch (50.8 mm)
- Material: Steel
- Surface finish: Zinc plated
- Thickness: 1/8 inch (3.175 mm)
- Heat treated to Rockwell hardness C38-45
- Suitable for 1 inch screw thread
- Standard: ASME B18.21.1
- Dimensions (H x L x W): 3.175mm x 50.8mm x 50.8mm
- Weight: 0.05 kg
Key Features
- Made from heat treated steel with Rockwell hardness C38-45
- Zinc plated surface for corrosion resistance
- Complies with ASME B18.21.1 standard
- Grade 8 strength
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper fastening and load distribution.
Applications
- Mechanical assemblies requiring flat washers for load distribution
- Industrial and construction fastening applications
- Suitable for use with 1 inch screw threads
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Zinc plating extends product life reducing waste and replacement frequency
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Flat Washer WSH FLT USS A W GR8 Zinc Plated Steel is available for immediate purchase, ideal for industrial and construction fastening applications.
