Flat Zinc Plated Blue Countersunk Washer | 10.5mm Internal Diameter | RoHS Compliant | @Pack of 100 | by Wurth
Flat zinc plated blue countersunk washer with a 10.5mm internal diameter and RoHS compliance—ideal for timber and structural woodwork applications. Designed for use with countersunk screws, it features a solid steel construction that enhances head penetration resistance, ensuring a secure fit and structural integrity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flat Zinc Plated Blue Countersunk Washer | 10.5mm Internal Diameter | RoHS Compliant | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 457700110
Alternatively Known As: Countersunk washer, Flat countersunk washer, Zinc plated countersunk washer

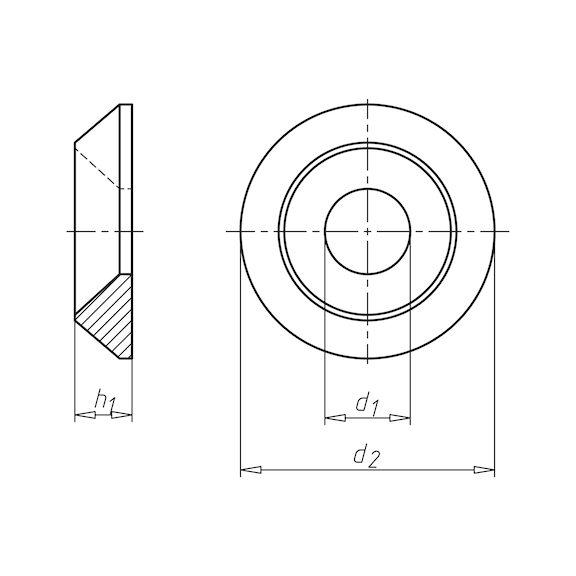

Technical Specifications
- Internal diameter (d1): 10.5 mm
- Outer diameter (d2): 30 mm
- Outer diameter 2 (d3): 21 mm
- Countersink diameter (d4): 20 mm
- Height (h1): 7 mm
- Washer thickness (t): 7 mm
- Material: Steel
- Surface: Zinc plated
- RoHS-compliant: Yes
- Suitable for: Countersunk screw D 10 mm
- Dimensions (H x L x W): 7mm x 30mm x 30mm
- Weight: 0.05 kg
Key Features

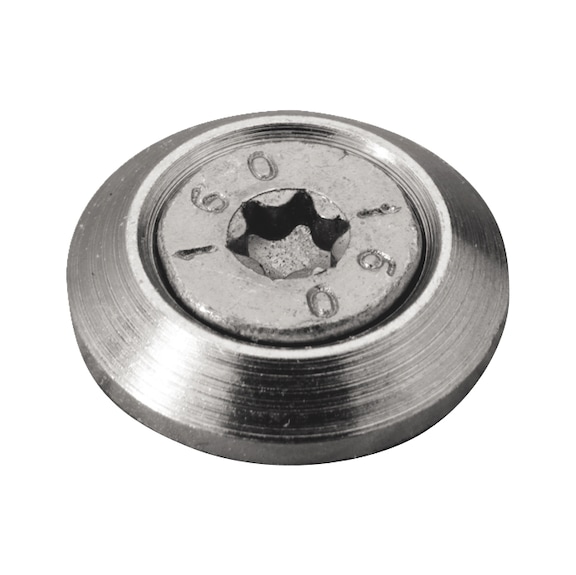

- Increases head penetration resistance for countersunk head screws with a 90° head
- Solid steel level, flat contact surface
Professional Installation Requirements
- Installation by a qualified tradesperson recommended to ensure proper fit and structural integrity.

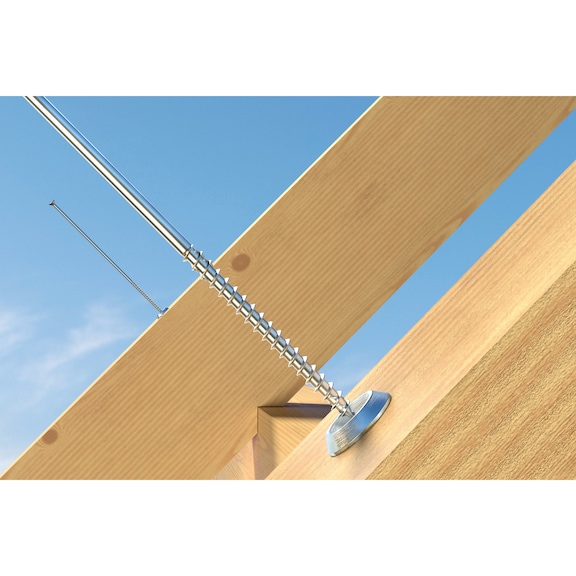

Applications
- Timber construction
- Timber panel construction
- Structural woodwork
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant, ensuring reduced hazardous substances in manufacturing
Warranty Information
Standard manufacturer warranty applies.
Available Now
Available for immediate purchase, ideal for timber and structural woodwork applications.
