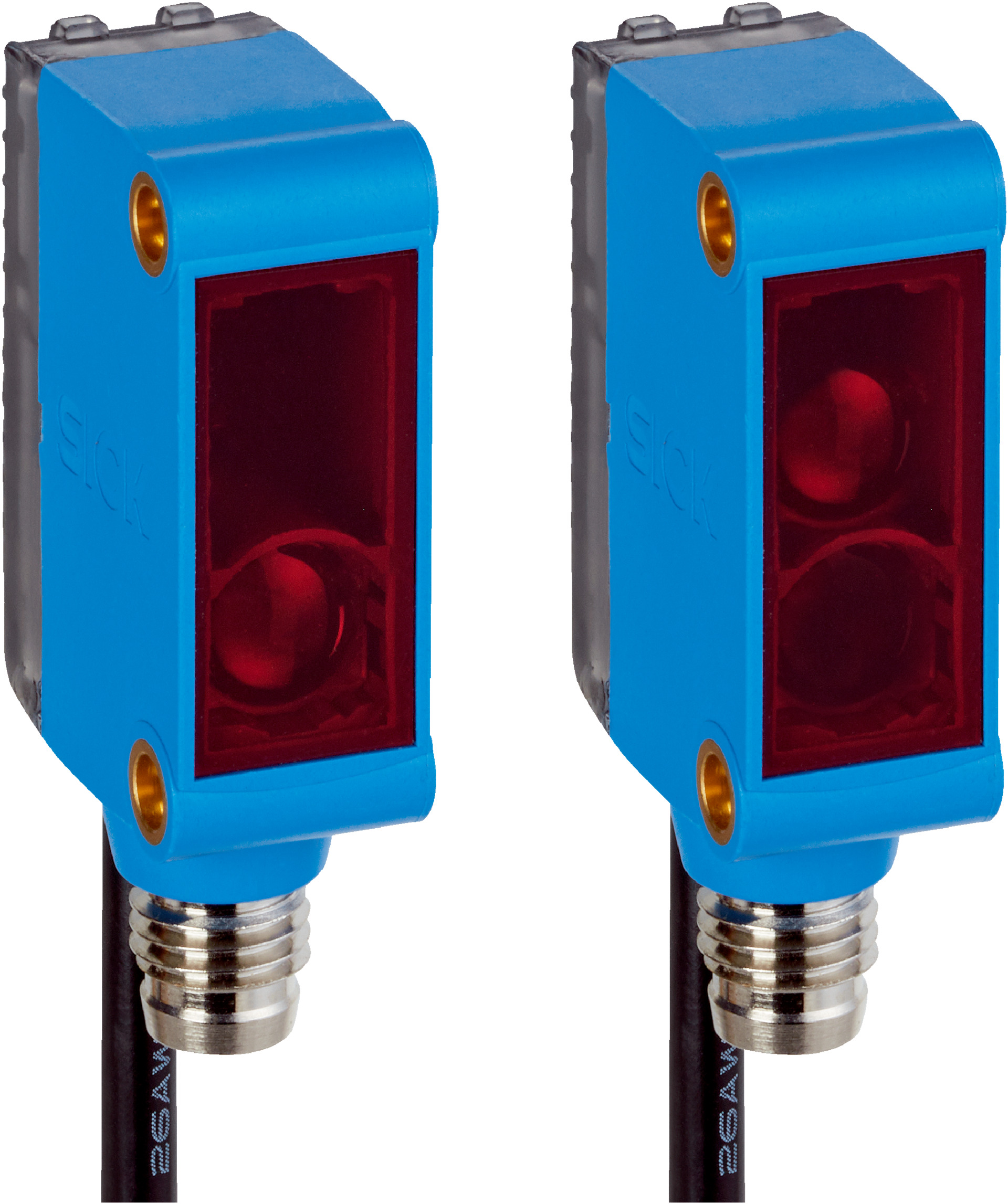

FlexChain Guest Light Grid Sensor | Infrared LED | IP65 & IP67 Rated | 15m Operating Range | by SICK
The FlexChain Guest Light Grid Sensor is designed for industrial automation, featuring a sender/receiver light grid system with a PinPoint LED infrared light source. With an impressive operating range of up to 15 meters and high protection ratings of IP65 and IP67, this sensor is perfect for machine guarding and presence detection in various applications, ensuring safety and efficiency in your operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device version: FlexChain Guest
- Sensor principle: Sender/receiver light grid system
- Light source: PinPoint LED, Infrared light
- Light spot size at 12 m distance: Ø 375 mm
- Wavelength: 850 nm
- Supply voltage: 12 V via FlexChain host
- Adjustment: Cable sensitivity via FlexChain host
- Connection type: Male connector M8, 4-pin; cable with M8 female connector, 4-pin, angled, 0.15 m
- Housing material: Plastic (ABS)
- Enclosure rating: IP65, IP67
- Protection class: III
- Operating range: 15 m
- Shock resistance: Single shocks 30 g, 11 ms; continuous shocks 25 g, 6 ms
- Vibration resistance: Sinusoidal oscillation 20-2,000 Hz, 10 g
- EMC: EN 61000-6-2, EN 61000-6-3
- Ambient light immunity: Direct 40,000 lx
- Operating temperature: -25°C to +55°C
- Storage temperature: -25°C to +70°C
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Sender/receiver light grid system
- PinPoint LED infrared light source
- Operating range up to 15 meters
- Compact dimensions: 12 mm x 31.5 mm x 21 mm
- High protection rating IP65 and IP67
- Shock resistance up to 30 g and vibration resistance up to 10 g
- EMC compliant with EN 61000-6-2 and EN 61000-6-3
- Ambient light immunity up to 40,000 lx
- Wide operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards.
Applications
- Industrial automation for object detection and safety
- Machine guarding and presence detection
- Material handling and conveyor systems
Standards & Compliance
- Complies with AS/NZS 61000 series for Electromagnetic Compatibility (EMC) standards
Environmental Benefits
- Low power consumption with 12 V supply via FlexChain host
- Durable ABS plastic housing reduces need for frequent replacements
- High resistance to environmental factors extends product lifespan
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

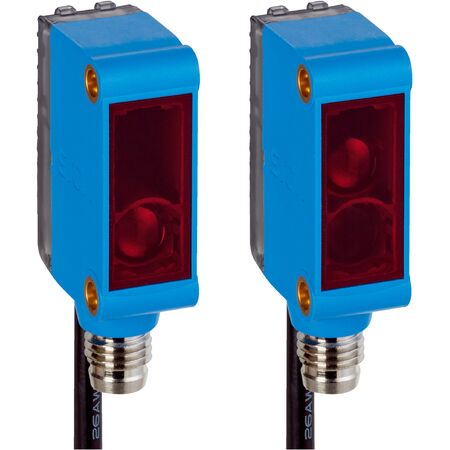

The SICK GSE6-C0021K01 FlexChain Guest Light Grid Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
