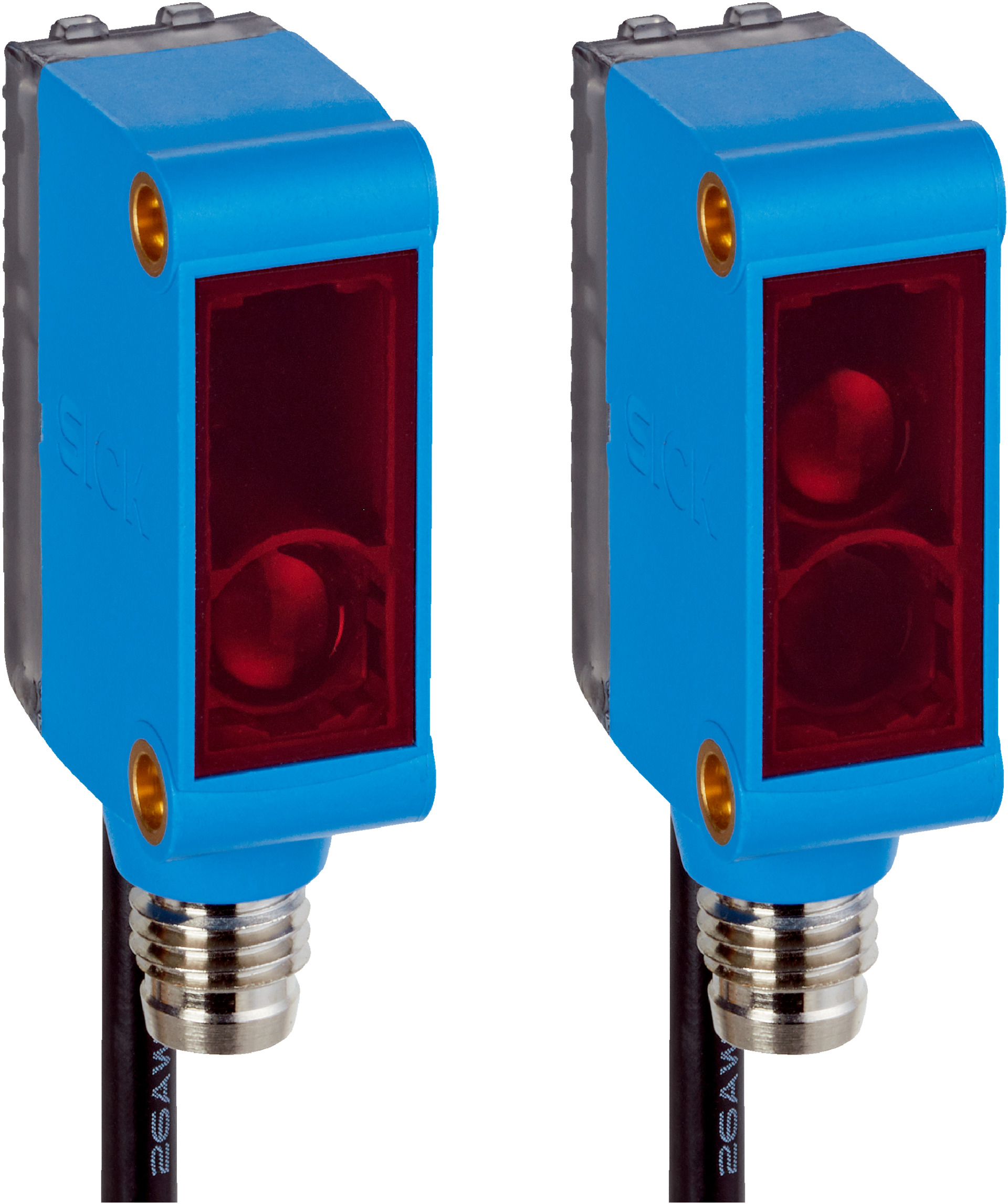

FlexChain Guest Light Grid Sensor | Sender/Receiver System | IP65 & IP67 Rated | 15m Operating Range | by SICK
The FlexChain Guest Light Grid Sensor is designed for precise object detection in industrial automation. Featuring a sender/receiver light grid system with a PinPoint LED infrared light source, it operates effectively up to 15 meters. With robust IP65 and IP67 ratings, this sensor is built to withstand harsh environments, making it ideal for machine guarding and access control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device version: FlexChain Guest
- Sensor principle: Sender/receiver light grid system
- Light source: PinPoint LED, Infrared light
- Light spot size at 12 m distance: Ø 375 mm
- Wavelength: 850 nm
- Supply voltage: 12 V via FlexChain host
- Adjustment: Cable sensitivity via FlexChain host
- Connection type: Male connector M8, 4-pin; Cable with female connector M8, 4-pin, 1.5 m
- Housing material: Plastic (ABS)
- Enclosure rating: IP65, IP67
- Protection class: III
- Operating range: 15 m
- Shock resistance: Single shocks 30 g, 11 ms; continuous shocks 25 g, 6 ms
- Vibration resistance: Sinusoidal oscillation 20-2,000 Hz, 10 g
- EMC: EN 61000-6-2, EN 61000-6-3
- Ambient light immunity: Direct 40,000 lx
- Ambient operating temperature: -25°C to +55°C
- Storage temperature: -25°C to +70°C
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Sender/receiver light grid system for precise detection
- PinPoint LED infrared light source with 850 nm wavelength
- Operating range up to 15 meters
- Robust plastic (ABS) housing with IP65 and IP67 enclosure rating
- Shock resistance up to 30 g and vibration resistance up to 10 g
- EMC compliant with EN 61000-6-2 and EN 61000-6-3 standards
- Ambient light immunity up to 40,000 lx
- Wide ambient operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards.
Applications
- Industrial automation for object detection and safety
- Machine guarding and access control
- Material handling and conveyor systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with 12 V supply via FlexChain host
- Durable design reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

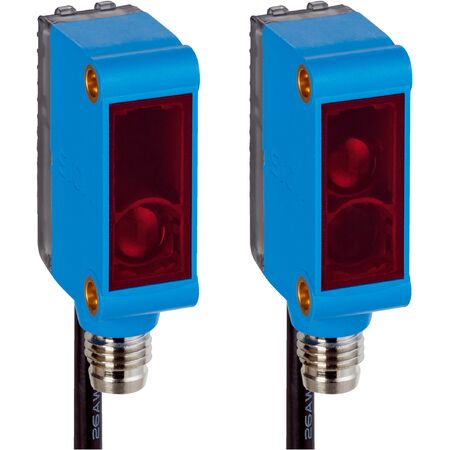

The SICK GSE6-CB021K00 FlexChain Guest Light Grid Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
