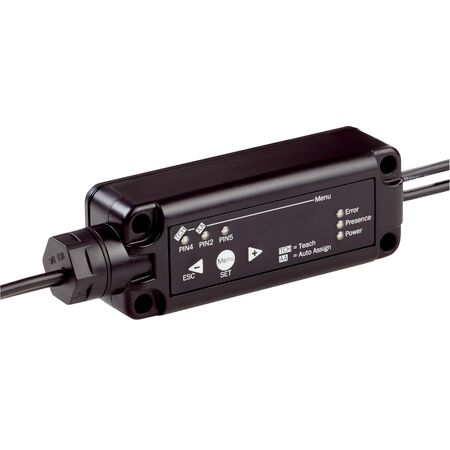

FlexChain Host Sensor FC1A-AZ2A1A | Photoelectric Proximity Sensor | IP65/IP67 Rated | by SICK
The FlexChain Host Sensor FC1A-AZ2A1A is a versatile photoelectric proximity sensor designed for industrial automation. With a robust IP65/IP67 rated enclosure, it ensures reliable performance in harsh environments. Ideal for precise object detection and measurement, this sensor supports IO-Link V1.1 communication for easy configuration and diagnostics, making it perfect for factory automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 24 V
- Maximum current consumption: 600 mA at 24 V
- Output current max: ≤ 100 mA
- Output load capacitive: 100 µF
- Output load inductive: 1 H
- Initialization time: < 1 second
- Connection type: Cable with M12, 5-pin plug
- Housing material: Plastic (ABS)
- Synchronization: Cable
- Protection class: III
- Response time: ≤ 35 ms
- Communication: IO-Link V1.1, 230.4 kbit/s data rate, cycle time ≥ 2.3 ms
- Inputs/outputs: 2 x I/O + 1 x Q (IO-Link)
- Digital outputs: Q1, Q2, Q3
- Digital inputs: In1, In2
- Shock resistance: 30 g single shocks, 25 g continuous shocks
- Vibration resistance: 10 g sinusoidal oscillation
- EMC standards: EN 61000-6-2, EN 61000-6-3
- Operating temperature: -25 °C to +50 °C
- Storage temperature: -25 °C to +70 °C
- Dimensions (H x L x W): 25mm x 35mm x 109mm
- Weight: 0.154 kg
Key Features
- FlexChain Host device version
- Photoelectric retro-reflective sensor, proximity sensor, and light grid system
- USB connection for easy configuration with SOPAS ET engineering tool
- Sensor parameterization, zone definition, measurement and logic functions
- Diagnostics and interface parameterization functions
- IP65 and IP67 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protected outputs
- Shock resistance up to 30 g and vibration resistance up to 10 g
- Supports IO-Link V1.1 communication with 230.4 kbit/s data rate
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper configuration and compliance with safety standards.
Applications
- Industrial automation for object detection and measurement
- Factory automation requiring precise sensor configuration
- Environments needing robust photoelectric retro-reflective sensing
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient sensor operation reduces power consumption in automation systems
- Durable IP65/IP67 housing extends product life, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK FC1A-AZ2A1A FlexChain Host is available for immediate purchase, ideal for industrial automation and sensor integration applications.
