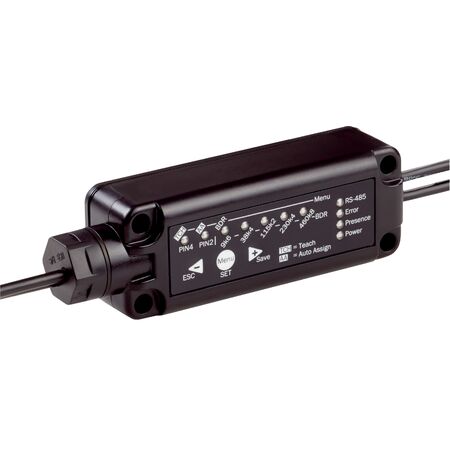

FlexChain Host Sensor FC1A-CZ2A1A | IP65 & IP67 Rated | IO-Link & RS-485 Communication | by SICK
The FlexChain Host Sensor FC1A-CZ2A1A is designed for industrial automation, featuring robust IP65 and IP67 ratings for protection against dust and water. With IO-Link and RS-485 communication capabilities, it ensures reliable performance in machine monitoring and control applications. Built for efficiency, this sensor supports quick configuration and diagnostics, making it ideal for safety systems in factories and process automation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 24 V
- Maximum current consumption: 600 mA at 24 V
- Output current max: ≤ 100 mA
- Capacitive output load: 100 µF
- Inductive output load: 1 H
- Initialization time: < 1 second
- Connection type: Cable with M12, 8-pin plug
- Housing material: Plastic (ABS)
- Synchronization: Cable
- Enclosure rating: IP65, IP67
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Response time: ≤ 35 ms
- Communication: IO-Link V1.1 (230.4 kbit/s), RS-485
- Digital outputs: 1 x Q (IO-Link), 2 digital outputs Q1, Q2
- Digital input: 1 x In1
- Shock resistance: 30 g single shocks, 25 g continuous shocks
- Vibration resistance: 10 g sinusoidal oscillation
- EMC compliance: EN 61000-6-2, EN 61000-6-3
- Operating temperature: -25 °C to +50 °C
- Storage temperature: -25 °C to +70 °C
- Dimensions (H x L x W): 25mm x 35mm x 109mm
- Weight: 0.161 kg
Key Features
- FlexChain Host device version
- Sender/receiver photoelectric retro-reflective sensor and proximity sensor
- Light grid system integration
- USB connection for easy configuration with SOPAS ET engineering tool
- Sensor parameterization, zone definition, measurement and logic functions
- Diagnostics and interface parameterization
- IP65 and IP67 rated enclosure for robust protection
- Reverse polarity and short-circuit protected outputs
- Shock resistance up to 30 g and vibration resistance up to 10 g
- Supports IO-Link V1.1 and RS-485 communication interfaces
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper configuration and compliance with safety standards.
Applications
- Industrial automation and safety systems
- Machine monitoring and control
- Factory and process automation requiring photoelectric sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation minimizes power consumption in industrial settings
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK FC1A-CZ2A1A FlexChain Host is available for immediate purchase, ideal for industrial automation and safety applications.
