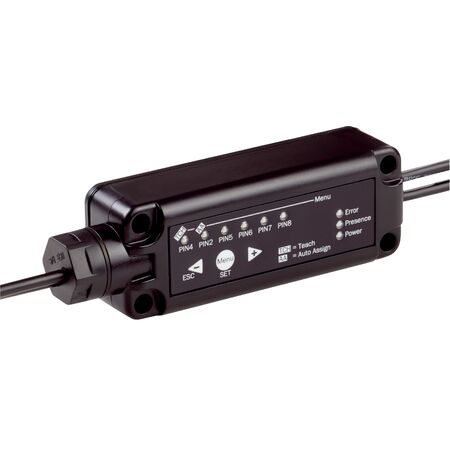

FlexChain Host Sensor FC1A-BZ2A1A | IP65 & IP67 Rated | 24V Supply Voltage | by SICK
The FlexChain Host Sensor FC1A-BZ2A1A is designed for industrial automation, featuring robust IP65 and IP67 ratings for reliable performance in harsh environments. With a 24V supply voltage and advanced IO-Link communication, it’s perfect for machine monitoring and control applications, ensuring efficient operation and safety compliance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 24 V
- Current consumption: 600 mA at 24 V
- Output current max: ≤ 100 mA
- Output load capacitive: 100 µF
- Output load inductive: 1 H
- Initialization time: < 1 s
- Connection type: Cable with M12, 8-pin plug
- Housing material: Plastic (ABS)
- Synchronization: Cable
- Enclosure rating: IP65, IP67
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Response time: ≤ 35 ms
- Communication interface: IO-Link V1.1, 230.4 kbit/s data rate, cycle time ≥ 2.3 ms, process data length 32 Byte
- Inputs/outputs: 5 x I/O + 1 x Q (IO-Link)
- Shock resistance: Single shocks 30 g, 11 ms; continuous shocks 25 g, 6 ms
- Vibration resistance: Sinusoidal oscillation 20-2000 Hz, 10 g, 3 h per axis
- EMC: EN 61000-6-2, EN 61000-6-3
- Operating temperature: -25 °C to +50 °C
- Storage temperature: -25 °C to +70 °C
- Dimensions (H x L x W): 25mm x 35mm x 109mm
- Weight: 0.161 kg
Key Features
- FlexChain Host device version
- Sender/receiver photoelectric retro-reflective sensor, photoelectric proximity sensor, and light grid system
- USB connection for easy configuration with SOPAS ET engineering tool
- Sensor parameterization, zone definition, measurement functions, logic functions, interface parameterization, and diagnostics
- IP65 and IP67 rated enclosure for robust protection
- Cable with M12, 8-pin plug connection
- Circuit protection including reverse polarity, short-circuit, and interference pulse suppression
- Shock resistance up to 30 g and vibration resistance up to 10 g
- Operating temperature range from -25°C to +50°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and IO-Link communication protocols to ensure proper configuration and safety compliance.
Applications
- Industrial automation and safety systems
- Machine monitoring and control
- Factory and process automation requiring photoelectric sensing
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient sensor operation reduces power consumption in automation systems
- Durable IP65/IP67 housing extends product life, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK FC1A-BZ2A1A FlexChain Host is available for immediate purchase, ideal for industrial automation and safety applications requiring reliable photoelectric sensing.
