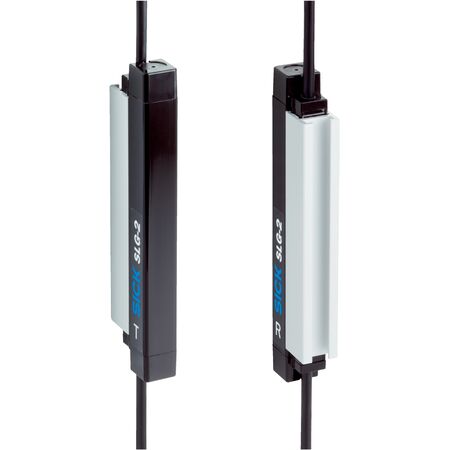

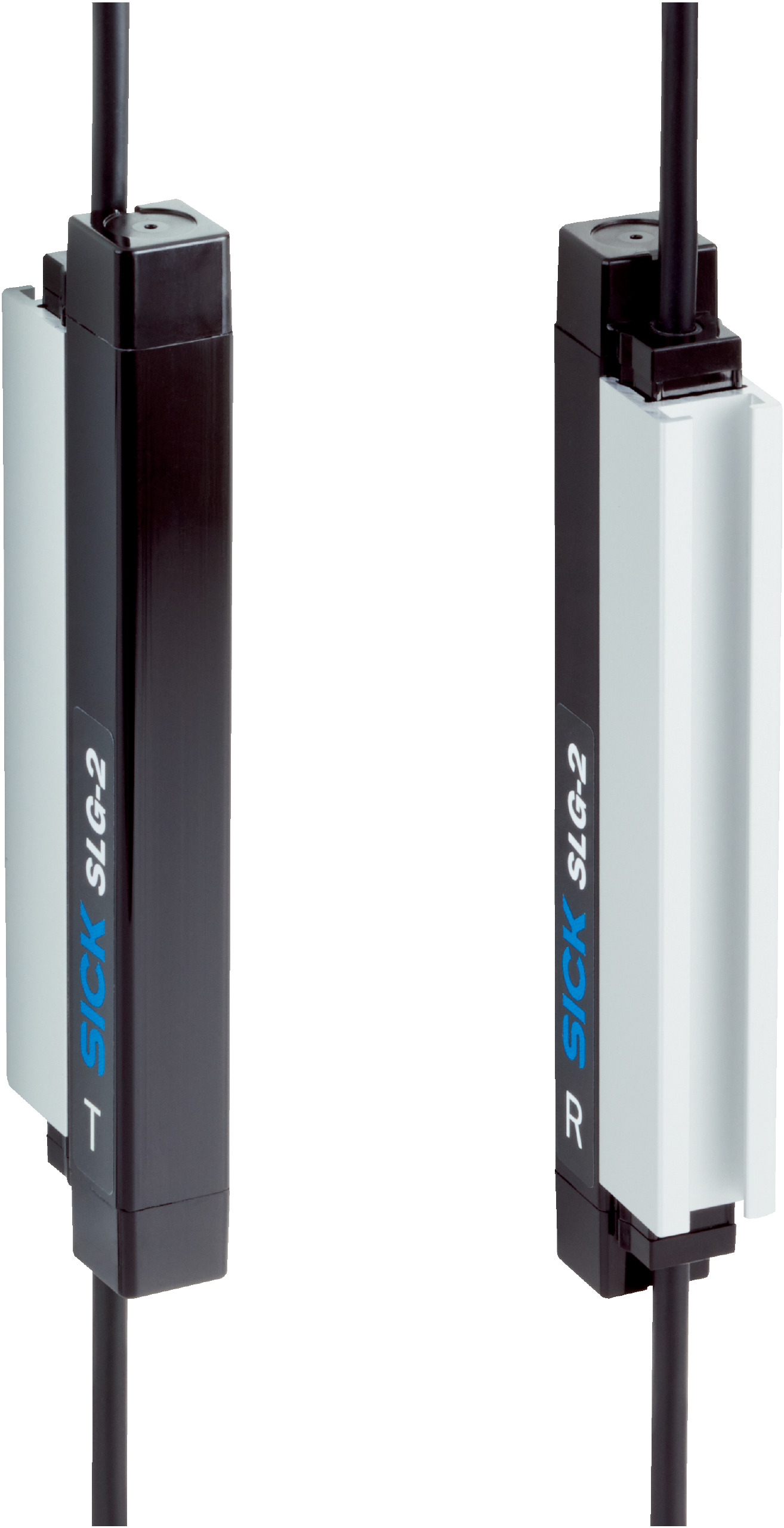

FlexChain Light Grid System | 120 Beams | IP65 & IP67 Rated | Infrared Light Source | by SICK
The FlexChain Light Grid System is designed for industrial automation, featuring a sender/receiver light grid system with 120 beams and a minimum detectable object size of 15 mm. With high protection ratings of IP65 and IP67, this system is perfect for machine guarding and perimeter protection, ensuring reliable object detection in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device version: FlexChain Guest
- Sensor principle: Sender/receiver light grid system
- Minimum detectable object (MDO): 15 mm
- Beam separation: 10 mm
- Number of beams: 120
- Detection height: 1,200 mm
- Light source: Infrared light
- Wavelength: 850 nm
- Supply voltage: Via FlexChain (host)
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: 1 s
- Connection type: Cable with M8 male connector, 4-pin; Cable with female connector, M8, 4-pin, 0.5 m
- Indication: LED
- Synchronization: Via FlexChain (host)
- Enclosure rating: IP65, IP67
- Circuit protection: Reverse polarity, interference pulse suppression, overcurrent and short-circuit protected outputs
- Protection class: III
- Front screen material: PMMA
- Maximum range: 9.1 m
- Minimum range: ≥ 0 m
- Operating range: 6.5 m
- Scanning time: 9.6 ms
- Shock resistance: 10 g, 16 ms (DIN EN 60068-2-27)
- Vibration resistance: 10-150 Hz, 0.5 mm (IEC 60068-2-6)
- EMC: EN 61000-6-2, EN 61000-6-4
- Ambient light immunity: Indirect 50,000 lx
- Operating temperature: –25 °C to +55 °C
- Storage temperature: –25 °C to +70 °C
- Dimensions (H x L x W): 1200mm x 12mm x 24mm
- Weight: 0.676 kg
Key Features
- Sender/receiver light grid system with 120 beams
- Minimum detectable object size of 15 mm
- Slim optical light exit design
- Infrared light source with 850 nm wavelength
- High protection rating of IP65 and IP67
- LED indication for status monitoring
- Reverse polarity and short-circuit protected outputs
- Shock and vibration resistant for industrial environments
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety sensor systems to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection and safety
- Machine guarding and perimeter protection
- Material handling and packaging lines
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient infrared light source reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK SLG10S-120SBKA1K01 FlexChain Guest Light Grid System is available for immediate purchase, ideal for industrial automation and safety applications.
