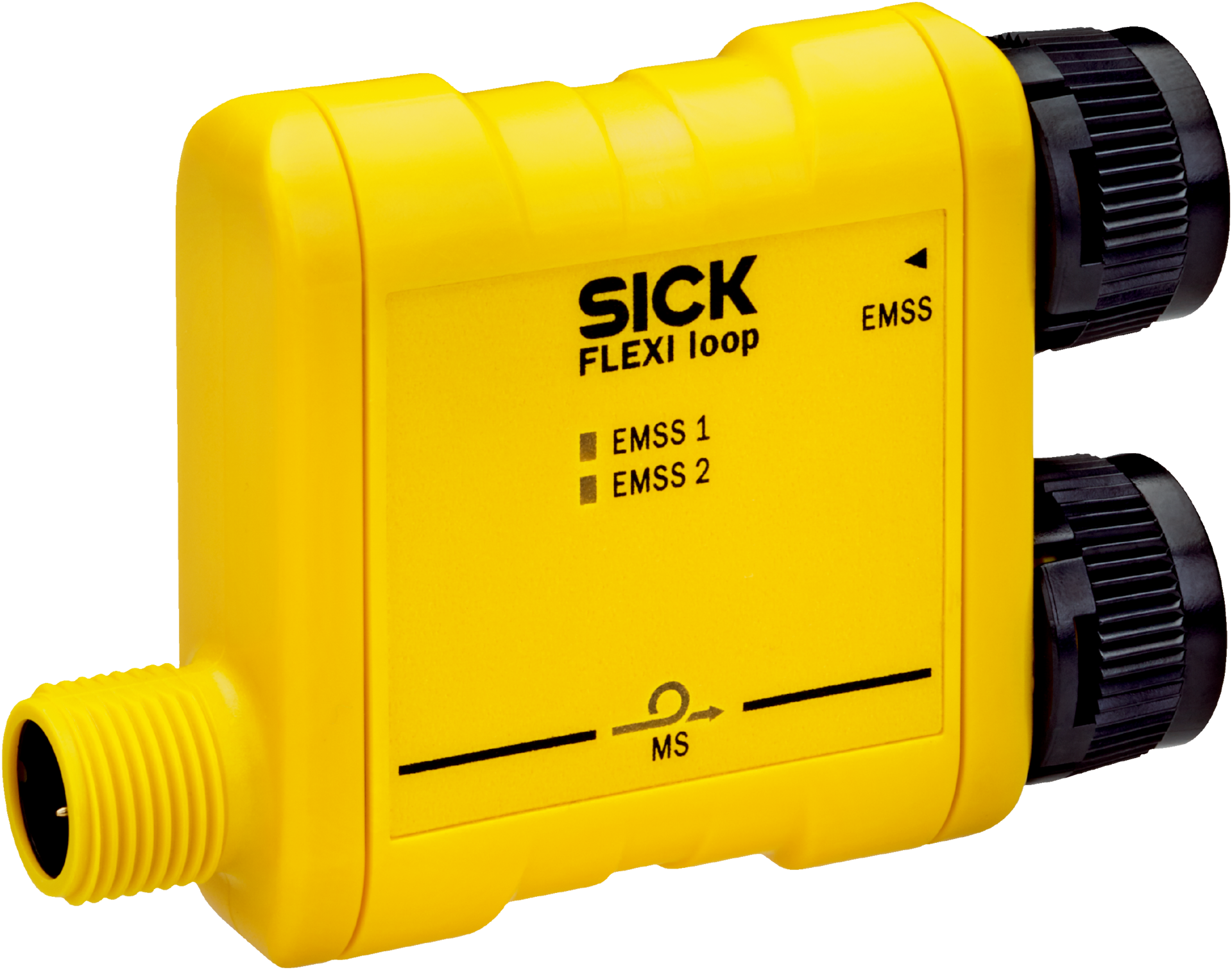

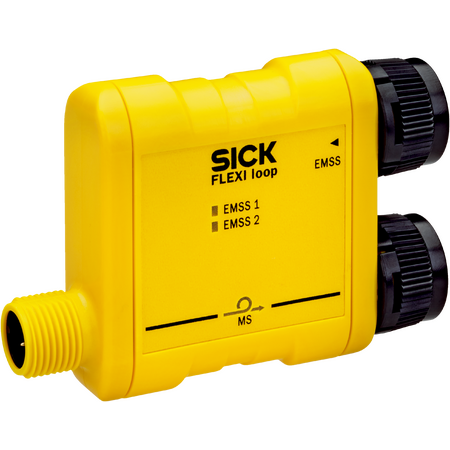

FLEXI LOOP Safety Device | SIL 3 & Category 4 | IP65/IP67 Enclosure | by SICK
The FLEXI LOOP safety device is engineered for industrial safety systems, featuring a SIL 3 safety integrity level and Category 4 compliance. With dual-channel electro-mechanical safety switch integration and robust IP65/IP67 enclosure, it ensures reliable performance in automated manufacturing environments. Ideal for professionals seeking enhanced safety monitoring solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Flexi Loop Safety Device, SICK Safety Loop Module, FLN-EMSS Safety Interface
Technical Specifications
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- Mean probability of dangerous failure per hour (PFHD): 0.76 x 10^-9 (EN ISO 13849)
- Mission time: 20 years (EN ISO 13849)
- Connection type: Female M12 5-pin for safety device and Flexi Loop output, Male M12 5-pin for Flexi Loop input
- Number of non-safe inputs and outputs: 0
- Supply voltage: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption: 55 mA
- Test pulse interval: 40 ms
- Test pulse width: 12 ms
- Test pulse current via switch contacts: 3 mA to 6.2 mA
- Enclosure rating: IP65 and IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Dimensions (H x L x W): 48mm x 18mm x 68mm
- Weight: 0.1 kg
Key Features
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 (EN ISO 13849) and Performance level PL e (EN ISO 13849)
- Diagnostic and monitoring functions including cross-circuit, short-circuit, discrepancy, and sequence error monitoring via Flexi Loop node
- Dual-channel equivalent electro-mechanical safety switch connection
- M12 connectors for safety device connection, Flexi Loop input and output
- Protection class III (EN 61140) with PELV or SELV supply voltage
- Power consumption of 55 mA
- Test pulse interval of 40 ms and test pulse width of 12 ms
- Enclosure rating IP65 and IP67 (EN 60529)
- Operating temperature range from -25 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified safety system professionals or certified electricians familiar with industrial safety standards and Flexi Soft systems.
Applications
- Industrial safety systems requiring dual-channel equivalent electro-mechanical safety switch integration
- Safety monitoring in automated manufacturing and processing plants
- Integration with Flexi Soft safety controllers for enhanced machine safety
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage in safety monitoring systems
- Durable IP65/IP67 rated enclosure minimizes environmental impact by extending product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK FLN-EMSS0000105 FLEXI LOOP safety device is available for immediate purchase, ideal for industrial safety and automation applications requiring high integrity safety monitoring.
