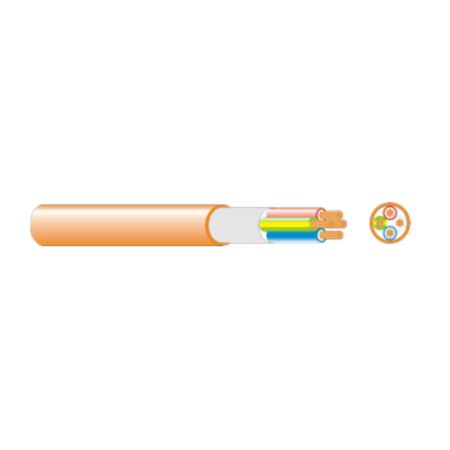

Flexible Circular Cable 7/104 x 2C+E Ore Cir 450-750V Orange 100m Electra
Electra 7/104 x 2C+E Ore Cir 450-750V flexible circular cable features a orange sheath, sold as a 100m roll. Ideal for flexible appliance and equipment leads.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 2C+E 6.0mm² Flex Ordinary Duty Orange Cable | 100m Length | PVC Insulation | by Electra Cables
Brand: Electra Cables
SKU: SRCV2060+E-100
Alternatively Known As: 6mm 2 Core and Earth Flex Cable, 2C+E 6mm Flex, Orange Flexible Power Cable, Heavy Duty Extension Cable
Technical Specifications
- Conductor: 2 core + earth (2C+E)
- Conductor Size: 6.0mm²
- Insulation: PVC V-90
- Sheath: PVC 5V-90, orange colour
- Voltage Rating: 450/750V
- Temperature Rating: -15°C to +90°C
- Length: 100 metres
- Complies with AS/NZS 3191
- Flexible stranded copper conductors
- Dimensions (H x L x W): 120mm x 350mm x 350mm
- Weight: 13.5 kg
Key Features
- Flexible 2 core and earth (2C+E) cable
- 6.0mm² conductor size for higher current capacity
- Ordinary duty PVC insulation and sheath
- Highly visible orange sheath for safety
- Supplied in a 100m reel
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules and local regulations.
Applications
- Industrial and commercial wiring
- Extension leads
- Power tools and portable appliances
- Temporary power supply for construction sites
Standards & Compliance
- Complies with AS/NZS 3191 – Electric flexible cords
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- PVC insulation is lead-free and compliant with RoHS standards
Warranty Information
12 months manufacturer's warranty against defects in materials and workmanship.
Available Now
The Electra Cables 2C+E 6.0mm2 Flex Ordinary Duty Orange 100m is available for immediate purchase. Ideal for industrial, commercial, and construction site power applications.
