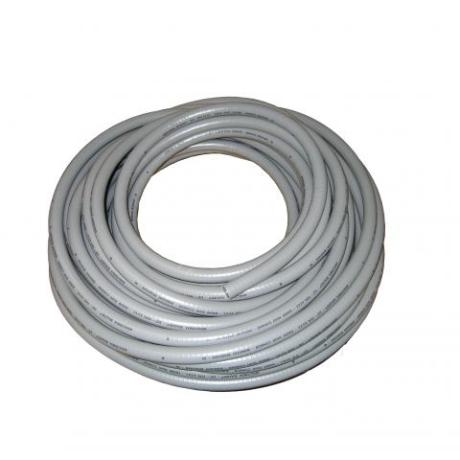

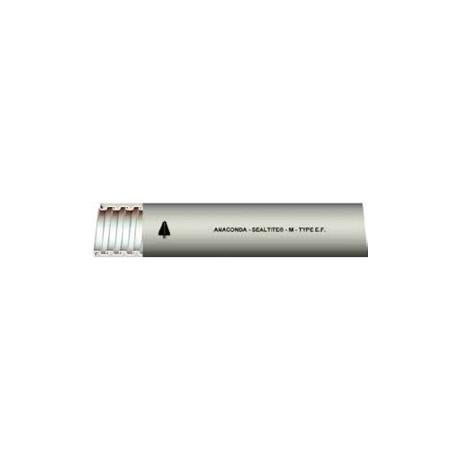

Flexible Conduit Anaconda LDEF | 20mm Diameter | Liquidtight & Sunlight Resistant | @Each by Wattmaster
Flexible conduit Anaconda LDEF with a 20mm diameter and 30m length offers exceptional dust and liquid tight protection for cables. Ideal for harsh industrial and outdoor environments, this conduit features a galvanized steel core and a durable, sunlight-resistant gray thermoplastic PVC cover. With an IP67 rating when correctly installed, it ensures reliable performance in electrical installations requiring flexibility and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible Conduit Anaconda LDEF | 20mm Diameter | Liquidtight & Sunlight Resistant | @Each by Wattmaster
Brand: Wattmaster
SKU: LDEF12-ORG-30
Alternatively Known As: Liquidtight Flexible Conduit, Anaconda LDEF Conduit, 20mm Orange Flexible Electrical Conduit, Liquidtight Wiring Conduit
Technical Specifications
- Diameter: 20mm
- Length: 30m
- Core: Galvanized steel
- Cover: Gray thermoplastic PVC, sunlight resistant
- IP Rating: IP67 with correctly installed fittings
- Temperature Range: -20°C to +70°C (up to +80°C intermittent)
- Conforms to IEC 61386
- No copper ground wire
- Dimensions (H x L x W): 20mm x 30000mm x 20mm
- Weight: 1.2 kg
Key Features
- Provides flexible dust and liquid tight protection of cables
- Extra flexible general construction grade liquid-tight wiring conduit with galvanized steel core
- Durable, sunlight resistant, gray thermoplastic PVC cover
- Smooth appearing cover with convenient markings in feet
- IP67 rating with correctly installed fittings
- Temperature range from -20°C to +70°C (up to +80°C intermittent)
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper fitting and compliance with electrical safety standards.
Applications
- Cable protection in harsh industrial and outdoor environments
- Flexible wiring conduit for electrical installations requiring dust and liquid tight protection
- Suitable for exposed applications needing sunlight resistance and durability
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces the need for frequent replacements, minimizing waste
- Sunlight resistant materials extend product life in outdoor applications
Warranty Information
Standard manufacturer warranty applies; please refer to Wattmaster for specific warranty details.
Available Now
The Wattmaster Flexible Conduit Anaconda LDEF Liquidtight 20mm Diameter 30m Orange is available for immediate purchase, ideal for industrial, commercial, and outdoor electrical wiring protection.
