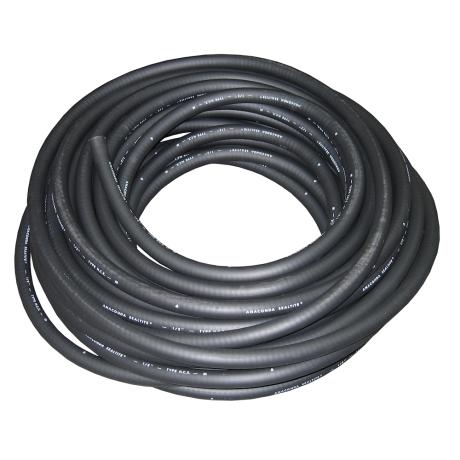

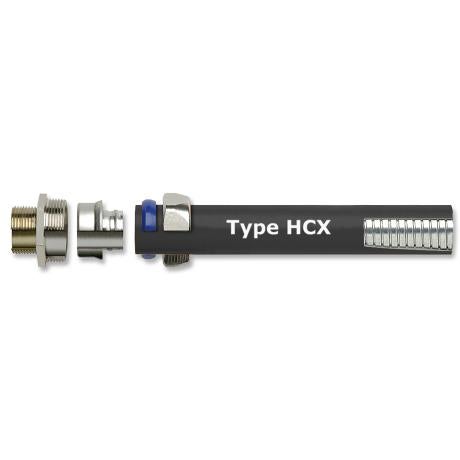

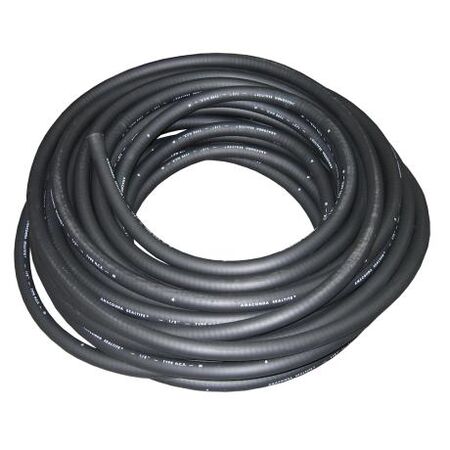

Flexible Conduit Anaconda HCX | High Temperature | IP67 Rated | 16mm Diameter | Black | @Each by Wattmaster
Flexible Conduit Anaconda HCX is designed for high-temperature environments, featuring a durable black thermoplastic rubber cover and an IP67 rating when installed with approved connectors. Ideal for both indoor and outdoor electrical installations, this conduit provides reliable protection against dust and liquids, making it perfect for harsh industrial and commercial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible Conduit Anaconda HCX | High Temperature | IP67 Rated | 16mm Diameter | Black | @Each by Wattmaster
Brand: Wattmaster
SKU: HCX38-30
Alternatively Known As: High Temperature Liquid Tight Flexible Conduit, Anaconda HCX Flexible Conduit, Liquid Tight Cable Conduit 16mm
Technical Specifications
- Diameter: 16mm
- Length: 30m
- IP Rating: IP67 with approved connectors

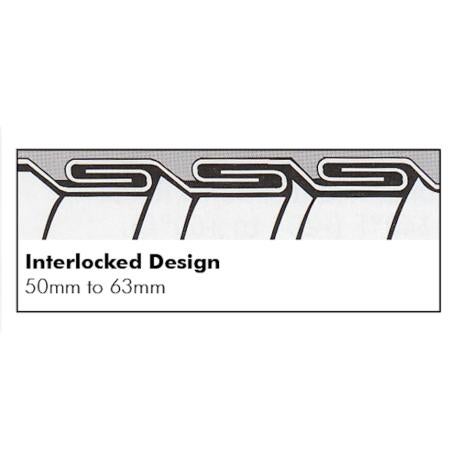

- Core: Continuously interlocked galvanised steel with cord packing
- Cover: Black thermoplastic rubber, sunlight resistant, chloride free
- No copper ground wire included
- Smooth cover with feet markings for easy measurement
- Suitable for extreme temperature environments
- Dimensions (H x L x W): 16mm x 30000mm x 16mm
- Weight: 3.5 kg
Key Features
- Provides cable protection in extreme temperatures, indoors and outdoors
- IP67 rating when installed with approved connectors
- Dust and liquid tight protection of cables
- Continuously interlocked galvanised steel core with cord packing for crush resistance and corrosion protection
- Durable, sunlight resistant black thermoplastic rubber cover
- Uses standard liquid-tight fittings for easy installation
- Thermoplastic rubber cover contains no chlorides
- Smooth appearing cover with convenient markings in feet
- No copper ground wire
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper sealing for IP67 rating.
Applications
- Cable protection in extreme temperature environments
- Indoor and outdoor electrical installations
- Harsh industrial and commercial wiring environments
- Liquid and dust tight cable routing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Sunlight resistant cover extends product life in outdoor applications
Warranty Information
Warranty terms as per Wattmaster standard product warranty policy.
Available Now
Available for immediate purchase, ideal for industrial, commercial, and residential electrical conduit applications requiring high temperature and liquid tight protection.
