Flexible Conduit Anaconda HCX | High Temperature Liquid Tight | IP67 Rated | 128mm Diameter | @Each by Wattmaster
The Flexible Conduit Anaconda HCX is designed for high-temperature environments, providing robust liquid-tight protection for electrical cables. With a durable black thermoplastic rubber cover and an IP67 rating when installed with approved connectors, it's perfect for both indoor and outdoor applications. Ideal for industrial and commercial wiring, this conduit ensures reliable performance in harsh conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible Conduit Anaconda HCX | High Temperature Liquid Tight | IP67 Rated | 128mm Diameter | @Each by Wattmaster
Brand: Wattmaster
SKU: HCX400
Alternatively Known As: High Temperature Liquid Tight Flexible Conduit, HCX Flexible Conduit, Anaconda HCX Conduit, Liquid Tight Cable Protection Conduit
Technical Specifications
- Diameter: 128mm
- Length: 7.62m
- IP Rating: IP67 with approved connectors
- Core: Continuously interlocked galvanised steel with cord packing
- Cover: Black thermoplastic rubber, sunlight resistant, chloride free
- No copper ground wire included
- Smooth cover with feet markings for easy measurement
- Suitable for extreme temperature environments
- Dimensions (H x L x W): 128mm x 7620mm x 128mm
- Weight: 5.5 kg
Key Features
- Provides cable protection in extreme temperatures, indoors and outdoors
- IP67 rating when installed with approved connectors
- Dust and liquid tight protection of cables

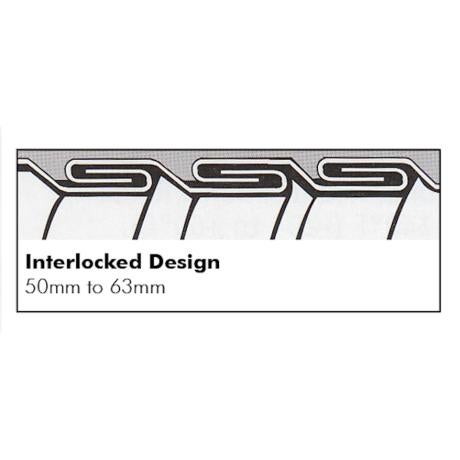

- Continuously interlocked galvanised steel core with cord packing for crush resistance and corrosion protection
- Durable, sunlight resistant black thermoplastic rubber cover
- Uses standard liquid-tight fittings for easy installation
- Thermoplastic rubber cover contains no chlorides
- Smooth appearing cover with convenient markings in feet
- No copper ground wire
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper sealing for IP67 rating.
Applications
- Protection of electrical cables in extreme temperature environments
- Indoor and outdoor cable installations requiring liquid and dust tight protection
- Industrial and commercial wiring in harsh environments
- Wiring protection in areas exposed to sunlight and corrosive conditions
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Sunlight resistant cover extends product life in outdoor applications
- Corrosion resistant core reduces environmental contamination risks
Warranty Information
Warranty terms available upon request from Wattmaster, typically covering manufacturing defects.
Available Now
The Wattmaster Flexible Conduit Anaconda HCX High Temperature Liquid Tight 128mm Diameter 7.62m Length is available for immediate purchase, ideal for industrial and commercial electrical installations requiring robust cable protection.
