Flexible Conduit Anaconda HCX | High Temperature Liquid Tight | IP67 Rated | 20mm Diameter | @Each by Wattmaster
Flexible Conduit Anaconda HCX is designed for high-temperature environments, providing liquid-tight protection for electrical cables. With a durable black thermoplastic rubber cover and an IP67 rating when installed with approved connectors, it's perfect for both indoor and outdoor applications. Ideal for industrial and commercial wiring, this conduit ensures long-lasting performance in harsh conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible Conduit Anaconda HCX | High Temperature Liquid Tight | IP67 Rated | 20mm Diameter | @Each by Wattmaster
Brand: Wattmaster
SKU: HCX12-15
Alternatively Known As: High Temperature Liquid Tight Flexible Conduit, Anaconda HCX Flexible Conduit, Liquid Tight Conduit 20mm, HCX Flexible Cable Conduit
Technical Specifications
- Diameter: 20mm
- Length: 15 meters
- IP Rating: IP67 with approved connectors

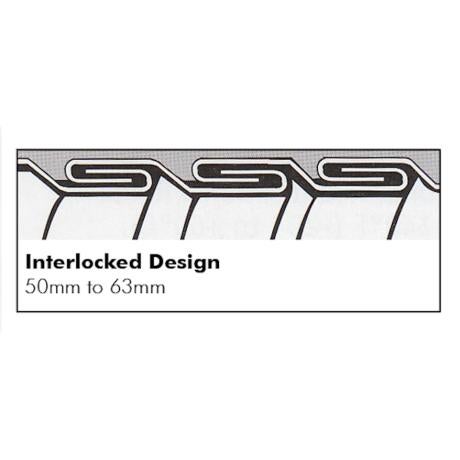

- Core: Continuously interlocked galvanised steel with cord packing
- Cover: Black thermoplastic rubber, sunlight resistant, chloride-free
- Crush resistance and corrosion protection
- Smooth cover with feet markings
- No copper ground wire included
- Dimensions (H x L x W): 20mm x 15000mm x 20mm
- Weight: 1.2 kg
Key Features
- Provides cable protection in extreme temperatures, indoors and outdoors
- IP67 rating when installed with approved connectors
- Dust and liquid tight protection of cables
- Continuously interlocked galvanised steel core with cord packing for crush resistance and corrosion protection
- Durable, sunlight resistant black thermoplastic rubber cover
- Thermoplastic rubber cover contains no chlorides
- Smooth appearing cover with convenient markings in feet

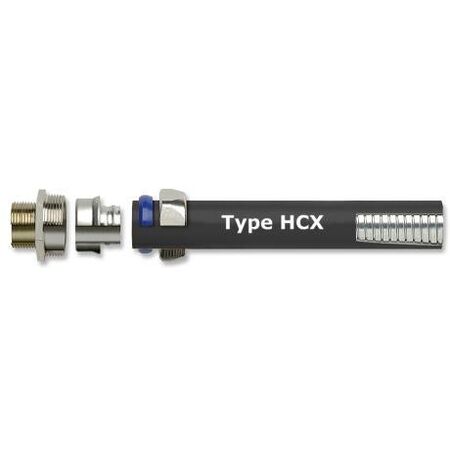

- Uses standard liquid-tight fittings for easy installation
- No copper ground wire
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper sealing for IP67 rating.
Applications
- Protection of electrical cables in extreme temperature environments
- Indoor and outdoor cable installations requiring liquid and dust tight protection
- Industrial and commercial wiring in harsh environments
- Use in areas exposed to sunlight and corrosive conditions
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Corrosion resistance extends product life in harsh environments
- Non-chloride thermoplastic rubber cover reduces environmental impact
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Wattmaster Anaconda HCX High Temperature Liquid Tight Flexible Conduit 20mm x 15m is available for immediate purchase, ideal for industrial, commercial, and harsh environment cable protection applications.
