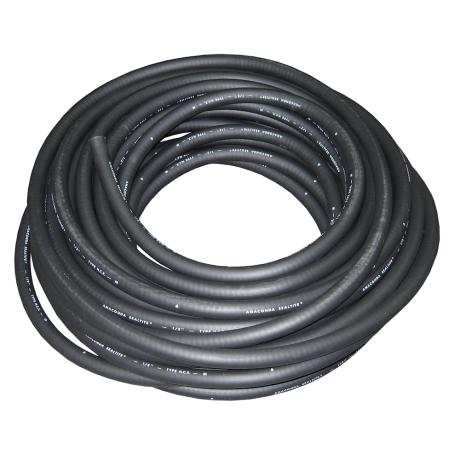

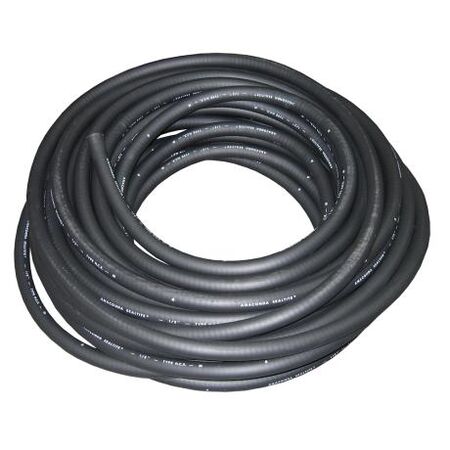

Flexible Conduit Anaconda HCX | High Temperature Liquid Tight | IP67 Rated | 20mm Diameter | @Each by Wattmaster
The Flexible Conduit Anaconda HCX is designed for high temperature and liquid tight applications, featuring a durable black thermoplastic rubber cover and an IP67 rating when installed with approved connectors. Ideal for both indoor and outdoor electrical installations, this conduit provides exceptional cable protection in extreme environments, ensuring long-lasting performance and reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible Conduit Anaconda HCX | High Temperature Liquid Tight | IP67 Rated | 20mm Diameter | @Each by Wattmaster
Brand: Wattmaster
SKU: HCX12-30
Alternatively Known As: High Temperature Liquid Tight Flexible Conduit, Anaconda HCX Flexible Conduit, Liquid Tight Conduit 20mm, HCX Flexible Cable Conduit
Technical Specifications
- Diameter: 20mm
- Length: 30m
- IP Rating: IP67 with approved connectors
- Core: Continuously interlocked galvanised steel with cord packing
- Cover: Black thermoplastic rubber, sunlight resistant, chloride free
- No copper ground wire included
- Smooth cover with feet markings for easy measurement
- Suitable for extreme temperature environments
- Dimensions (H x L x W): 20mm x 30000mm x 20mm
- Weight: 2.5 kg
Key Features
- Provides cable protection in extreme temperatures, indoors and outdoors
- IP67 rating when installed with approved connectors
- Dust and liquid tight protection of cables

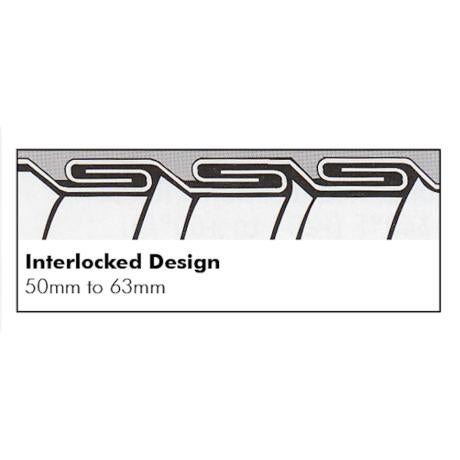

- Continuously interlocked galvanised steel core with cord packing for crush resistance and corrosion protection
- Durable, sunlight resistant, black thermoplastic rubber cover

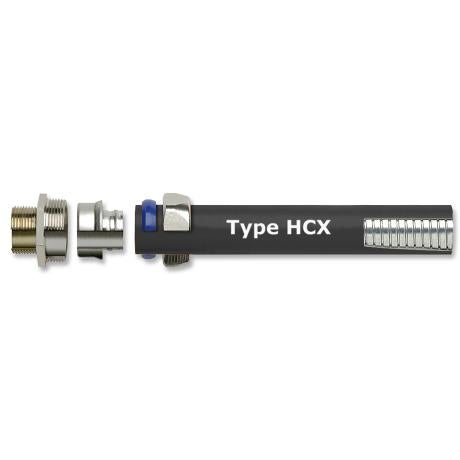

- Uses standard liquid-tight fittings for easy installation
- Thermoplastic rubber cover contains no chlorides
- Smooth appearing cover with convenient markings in feet
- No copper ground wire
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical standards and proper sealing for IP67 rating.
Applications
- Cable protection in extreme temperature environments
- Indoor and outdoor electrical installations
- Harsh environment wiring protection
- Industrial and commercial electrical conduit applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and corrosion resistant materials extend product life reducing waste
- Sunlight resistant cover reduces degradation and replacement frequency
- No chlorides in thermoplastic rubber cover reduces environmental contamination risk
Warranty Information
Warranty terms as provided by Wattmaster, typically 1-3 years against manufacturing defects.
Available Now
The Wattmaster Flexible Conduit Anaconda HCX High Temperature Liquid Tight 20mm x 30m is available for immediate purchase, ideal for industrial and commercial electrical conduit applications requiring high temperature and liquid tight protection.
