Flexible Conduit Anaconda HCX | High Temperature Liquid Tight | IP67 Rated | 25mm Diameter | @Each by Wattmaster

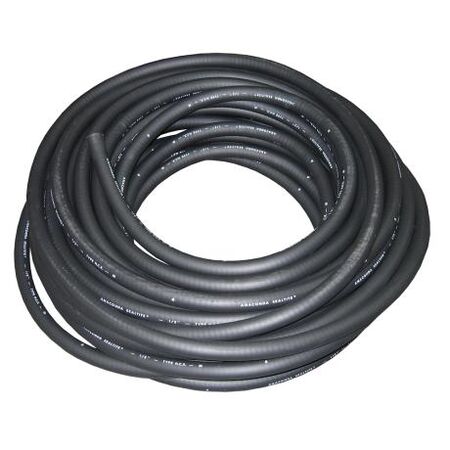

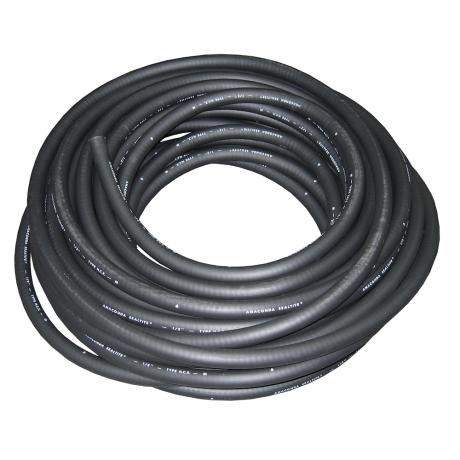

The Flexible Conduit Anaconda HCX is designed for high-temperature environments, featuring a 25mm diameter and IP67 rating for dust and liquid tight protection. Ideal for both indoor and outdoor applications, this conduit is built with a durable black thermoplastic rubber cover and a continuously interlocked galvanised steel core, ensuring crush resistance and corrosion protection for your cables.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible Conduit Anaconda HCX | High Temperature Liquid Tight | IP67 Rated | 25mm Diameter | @Each by Wattmaster
Brand: Wattmaster
SKU: HCX34-30
Alternatively Known As: High Temperature Liquid Tight Flexible Conduit, Anaconda HCX Flexible Conduit, Liquid Tight Conduit 25mm, HCX Flexible Conduit 30m
Technical Specifications
- Diameter: 25mm
- Length: 30m
- IP Rating: IP67 with approved connectors

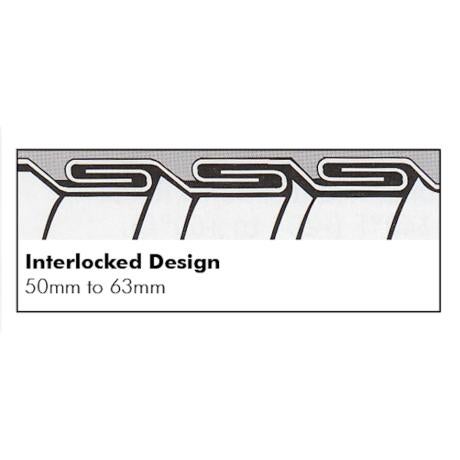

- Core: Continuously interlocked galvanised steel with cord packing
- Cover: Black thermoplastic rubber, sunlight resistant, chloride free
- No copper ground wire included
- Smooth cover with feet markings for easy measurement
- Suitable for extreme temperature environments
- Dimensions (H x L x W): 25mm x 30000mm x 25mm
- Weight: 3.5 kg
Key Features
- Provides cable protection in extreme temperatures, indoors and outdoors
- IP67 rating when installed with approved connectors
- Dust and liquid tight protection of cables
- Continuously interlocked galvanised steel core with cord packing for crush resistance and corrosion protection
- Durable, sunlight resistant, black thermoplastic rubber cover

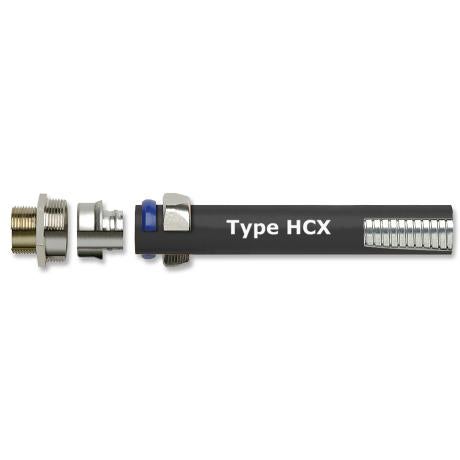

- Uses standard liquid-tight fittings for easy installation
- Thermoplastic rubber cover contains no chlorides
- Smooth appearing cover with convenient markings in feet
- No copper ground wire
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper sealing and compliance with IP67 rating.
Applications
- Indoor and outdoor cable protection in extreme temperature environments
- Industrial wiring requiring liquid-tight and dust-tight conduit protection
- Harsh environment electrical installations needing crush and corrosion resistance
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Sunlight resistant cover extends product life in outdoor applications
Warranty Information
Warranty terms as provided by Wattmaster, typically 1-3 years against manufacturing defects.
Available Now
The Wattmaster Flexible Conduit Anaconda HCX High Temperature Liquid Tight 25mm x 30m is available for immediate purchase, ideal for industrial and commercial electrical installations requiring robust cable protection.
