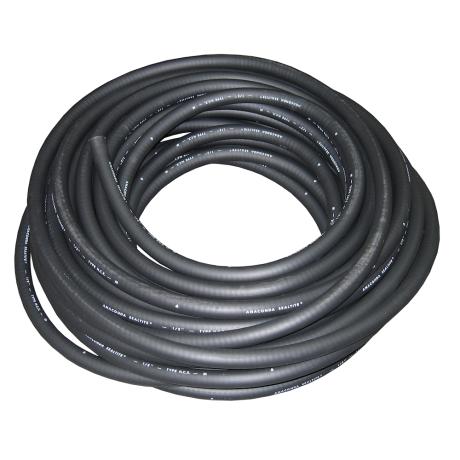

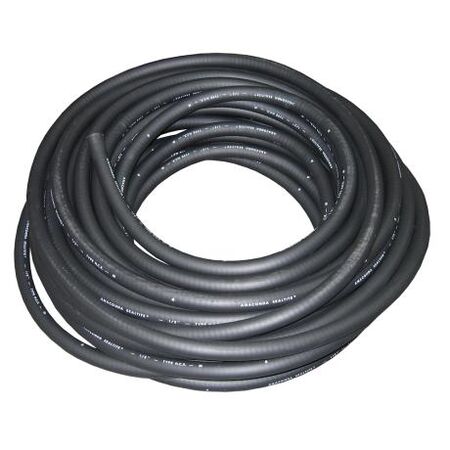

Flexible Conduit Anaconda HCX | High Temperature Liquid Tight | IP67 Rated | 32mm Diameter | @Each by Wattmaster
The Flexible Conduit Anaconda HCX is designed for high temperature and liquid tight applications, featuring a durable 32mm diameter and IP67 rating when installed with approved connectors. Ideal for industrial and commercial wiring, this conduit provides reliable cable protection in extreme environments, ensuring longevity and safety in both indoor and outdoor settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible Conduit Anaconda HCX | High Temperature Liquid Tight | IP67 Rated | 32mm Diameter | @Each by Wattmaster
Brand: Wattmaster
SKU: HCX100-30
Alternatively Known As: High Temperature Liquid Tight Flexible Conduit, Anaconda HCX Conduit, Liquid Tight Cable Protection Conduit
Technical Specifications
- Diameter: 32mm
- Length: 30m
- IP Rating: IP67 with approved connectors

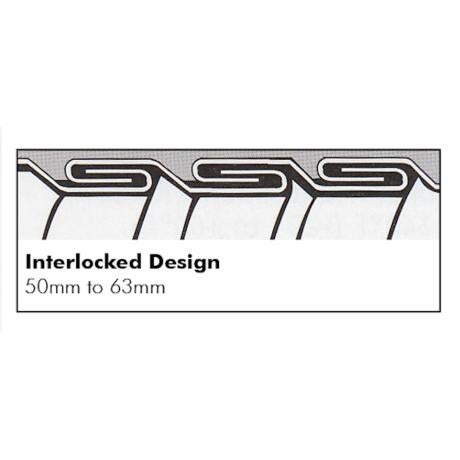

- Core: Continuously interlocked galvanised steel with cord packing
- Cover: Black thermoplastic rubber, sunlight resistant, chloride free
- No copper ground wire included
- Suitable for extreme temperature environments
- Smooth cover with feet markings for easy measurement
- Dimensions (H x L x W): 32mm x 30000mm x 32mm
- Weight: 3.5 kg
Key Features
- Provides cable protection in extreme temperatures, indoors and outdoors
- IP67 rating when installed with approved connectors
- Dust and liquid tight protection of cables
- Continuously interlocked galvanised steel core with cord packing for crush resistance and corrosion protection
- Durable, sunlight resistant black thermoplastic rubber cover

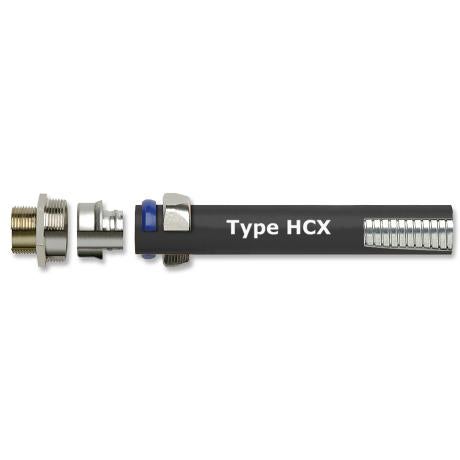

- Uses standard liquid-tight fittings for easy installation
- Thermoplastic rubber cover contains no chlorides
- Smooth appearing cover with convenient markings in feet
- No copper ground wire
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and proper sealing for IP67 rating.
Applications
- Protection of electrical cables in extreme temperature environments
- Indoor and outdoor cable installations requiring liquid and dust tight protection
- Industrial and commercial wiring in harsh environments
- Use in areas exposed to sunlight and corrosive conditions
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Sunlight resistant cover extends product life in outdoor applications
Warranty Information
Standard manufacturer warranty applies, typically 1 year against manufacturing defects.
Available Now
The Wattmaster Flexible Conduit Anaconda HCX High Temperature Liquid Tight 32mm 30m is available for immediate purchase, ideal for industrial and commercial electrical installations requiring high temperature and liquid tight cable protection.
