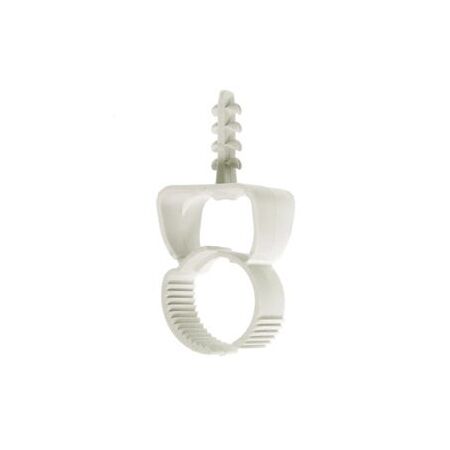

Flexible Conduit Clip | 16-20mm Compatibility | Easy Installation & UV-Stabilized by Cabac
The Cabac Caddy Flexible Conduit Clip with Plug 16-20mm offers versatile and secure mounting for flexible conduits, compatible with two conduit sizes and easy to install with a simple push-fit plug.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Caddy flexible conduit clip with plug 16-20mm
Brand: Cabac
SKU: SCUSA1620
Alternatively Known As: Flexible conduit clamp, conduit clip with plug, plastic conduit clamp, conduit fixing clip
Technical Specifications
- Material: Polypropylene
- Temperature range: -10 to 85°C
- Drill hole diameter: 6mm
- Drill hole depth: 23mm
- Load rating: 17Kg
- Quantity per box: 100 pieces
- Non-flame propagating per IEC 61386-25
- Passed 650°C glowing/hot-wire test per EN 60695-2
- Halogen free and UV-stabilized
- Dimensions (H x L x W): 30mm x 40mm x 25mm
- Weight: 0.01 kg
Key Features
- Flexible design accommodates 16mm or 20mm conduit sizes
- Easy installation by pushing plug into a 6mm diameter hole
- Non-flame propagating compliant with IEC 61386-25
- Passed 650°C glowing/hot-wire test per EN 60695-2
- Halogen free and UV-stabilized for durability
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure secure mounting and compliance with electrical standards.
Applications
- Securing flexible conduits in electrical installations
- Mounting conduits in residential, commercial, and industrial settings
- Supporting conduit runs in structural attachment applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen free material reduces harmful emissions in case of fire
- UV-stabilized polypropylene enhances product longevity, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms.
Available Now
The Cabac Caddy Flexible Conduit Clip with Plug 16-20mm is available now for immediate purchase. Ideal for electrical conduit securing in residential, commercial, and industrial applications.
