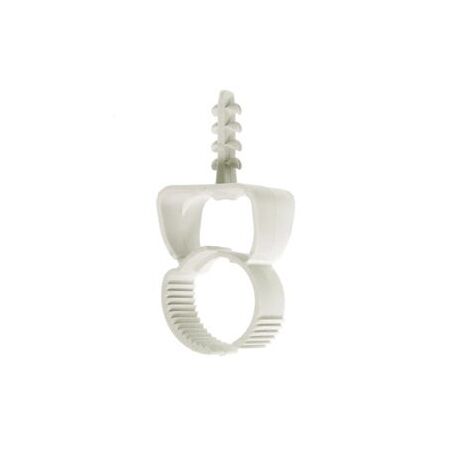

Flexible Conduit Clip 16-20mm Grey Cabac

BRAND: CABAC
SKU: SCUSA1620
$2.30 List price: $3.10
1 EA ($2.30 per EA)
+ −
30 Days Return Electricians Unlock Trade Access
Cabac Flexible Conduit Clip 16-20mm Compatibility features Polypropylene construction. Suited for AS NZS 2053 conduit installations.
Technical Specifications
  • Material: Polypropylene
  • Temperature range: -10 to 85°C
  • Drill hole diameter: 6mm
  • Drill hole depth: 23mm
  • Load rating: 17Kg
  • Quantity per box: 100 pieces
  • Non-flame propagating per IEC 61386-25
  • Passed 650°C glowing/hot-wire test per EN 60695-2
  • Halogen free and UV-stabilized
  • Dimensions (H x L x W): 30mm x 40mm x 25mm
  • Weight: 0.1 kg
Key Features
  • Flexible design accommodates 16mm or 20mm conduit sizes
  • Easy installation by pushing plug into a 6mm diameter hole
  • Non-flame propagating compliant with IEC 61386-25
  • Passed 650°C glowing/hot-wire test per EN 60695-2
  • Halogen free and UV-stabilized for durability
Professional Installation Requirements
  • Installation should be performed by a qualified professional to ensure secure mounting and compliance with electrical standards.
Applications
  • Securing flexible conduits in electrical installations
  • Mounting conduits in residential, commercial, and industrial settings
  • Supporting conduit runs in structural attachment applications
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Halogen free material reduces harmful emissions in case of fire
  • UV-stabilized polypropylene enhances product longevity, reducing waste
Warranty Information

Standard manufacturer warranty applies. Please refer to Cabac warranty terms.

Available Now

The Cabac Caddy Flexible Conduit Clip with Plug 16-20mm is available now for immediate purchase. Ideal for electrical conduit securing in residential, commercial, and industrial applications.

FAQ

Q: What conduit sizes are compatible with this clip?
A: This conduit clip with plug is designed to accommodate 16mm and 20mm flexible conduits.

Q: What installation method does this clip use?
A: The clip features a push-in plug design that installs into a 6mm diameter drill hole with a 23mm drill hole depth.


A flexible conduit clip 16-20mm provides an alternative mounting option where screw or anchor fixing is preferred.
Install with a flexible conduit 25mm black to help keep conduit runs supported and organised throughout the installation.
Pair with a flexible galvanised steel conduit 10mm where protected cable routing and conduit support are required.

Order with confidence — SCHNAP offers a 30-day return policy on electrical products.
