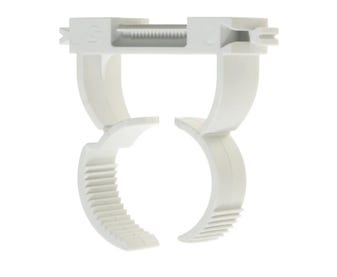

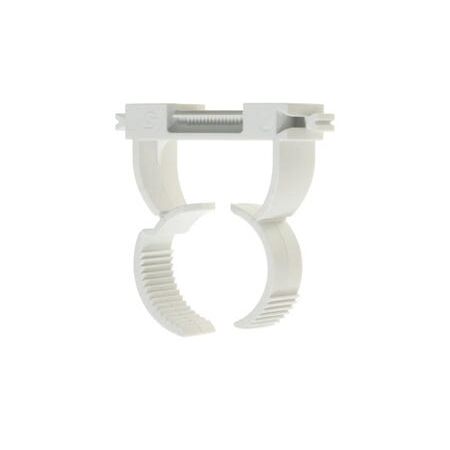

Flexible Conduit Clip 16-20mm | Polypropylene Material | UV Stabilized & Non-Flame Propagating by Cabac
The Cabac Caddy Flexible Conduit Clip 16-20mm offers versatile and secure mounting for flexible plastic conduits, supporting neat cable runs with high safety standards and UV resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Caddy flexible conduit clip 16-20mm
Brand: Cabac
SKU: SCFC1620
Alternatively Known As: Flexible conduit clamp, conduit clip 16mm, conduit clip 20mm, plastic conduit clamp, cable conduit clip
Technical Specifications
- Material: Polypropylene
- Temperature range: -10 to 85°C
- Compatible conduit sizes: 16mm and 20mm
- Non-flame propagating per IEC 61386-25
- Passed 650°C glowing/hot-wire test per EN 60695-2
- Halogen free and UV stabilized
- Dimensions (H x L x W): 20mm x 40mm x 30mm
- Weight: 0.02 kg
Key Features
- Flexible design accommodates 16mm or 20mm conduit sizes
- Can be mounted directly with a screw or via various Caddy anchor options
- Up to three clips can be connected together and attached to a single anchor
- Non-flame propagating according to IEC 61386-25
- Passed 650°C glowing/hot-wire test per EN 60695-2
- Halogen free and UV-stabilized for durability
Professional Installation Requirements
- Installation by a qualified electrician or professional recommended to ensure secure mounting and compliance with electrical standards.
Applications
- Electrical conduit management in residential, commercial, and industrial installations
- Securing flexible plastic conduits on various mounting surfaces
- Cable management for neat and organized conduit runs
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen free material reduces harmful emissions in case of fire
- UV stabilization extends product life, reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Cabac Caddy Flexible Conduit Clip 16-20mm is available now for immediate purchase. Ideal for electrical conduit management in residential, commercial, and industrial applications.
