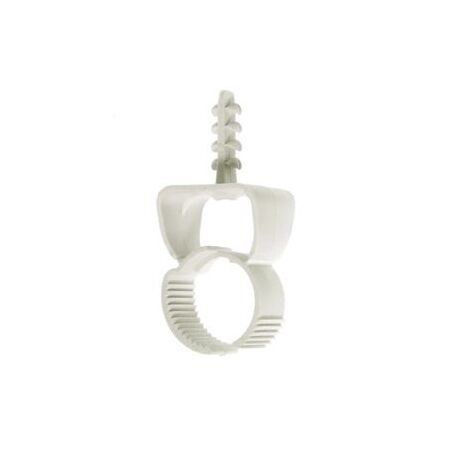

Flexible Conduit Clip | 25-32mm Compatibility | Easy Installation & UV-Stabilized by Cabac
The Cabac Caddy Flexible Conduit Clip with Plug 25-32mm offers versatile and secure mounting for flexible conduits, compatible with two conduit sizes and easy to install with a 6mm hole plug.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Caddy flexible conduit clip with plug 25-32mm
Brand: Cabac
SKU: SCUSA2532
Alternatively Known As: Flexible conduit clamp, conduit clip with plug, plastic conduit clamp, conduit mounting clip
Technical Specifications
- Material: Polypropylene
- Temperature range: -10 to 85°C
- Drill hole diameter: 6mm
- Drill hole depth: 23mm
- Load rating: 17Kg
- Non-flame propagating per IEC 61386-25
- Passed 650°C glowing/hot-wire test per EN 60695-2
- Halogen free and UV-stabilized
- Dimensions (H x L x W): 30mm x 50mm x 40mm
- Weight: 0.02 kg
Key Features
- Flexible design accommodates 25mm or 32mm conduit sizes
- Easy installation by pushing the plug into a 6mm diameter hole
- Non-flame propagating compliant with IEC 61386-25
- Passed 650°C glowing/hot-wire test per EN 60695-2
- Halogen free and UV-stabilized for durability
Professional Installation Requirements
- Installation requires a 6mm diameter hole; professional installation recommended to ensure secure mounting and compliance with electrical standards.
Applications
- Securing flexible conduits in electrical installations
- Mounting conduits in residential, commercial, and industrial buildings
- Supporting conduit runs in structural attachment applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen free material reduces environmental impact
- UV-stabilized polypropylene enhances product longevity, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Caddy Flexible Conduit Clip with Plug 25-32mm is available now for immediate purchase. Ideal for electrical conduit securing in residential, commercial, and industrial applications.
