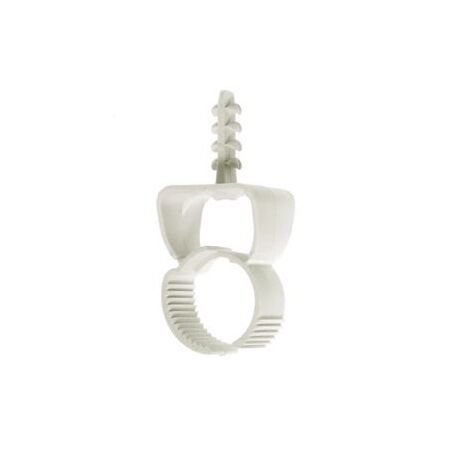

Flexible Conduit Clip with Plug for 20-25mm | Easy Installation | Halogen Free & UV Stabilized by Cabac
The Cabac Caddy Flexible Conduit Clip with Plug secures 20-25mm conduits easily with a push-fit plug for 6mm holes, offering flame retardant, halogen-free, and UV-stabilized properties for safe and durable conduit management.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Caddy flexible conduit clip with plug 20-25mm
Brand: Cabac
SKU: SCUSA2025
Alternatively Known As: Flexible conduit clamp, conduit clip with plug, plastic conduit clip, conduit fixing clip
Technical Specifications
- Material: Polypropylene
- Temperature range: -10 to 85°C
- Drill hole diameter: 6mm
- Drill hole depth: 23mm
- Load rating: 17Kg
- Non-flame propagating per IEC 61386-25
- Passed 650°C glowing/hot-wire test per EN 60695-2
- Halogen free and UV stabilized
- Dimensions (H x L x W): 25mm x 40mm x 30mm
- Weight: 0.02 kg
Key Features
- Flexible design accommodates 20mm or 25mm conduit sizes
- Easy installation by pushing plug into a 6mm diameter hole
- Non-flame propagating compliant with IEC 61386-25
- Passed 650°C glowing/hot-wire test per EN 60695-2
- Halogen free and UV-stabilized for durability
Professional Installation Requirements
- Installation requires a 6mm diameter hole; professional installation recommended to ensure secure mounting and compliance with electrical standards.
Applications
- Electrical conduit securing in residential, commercial, and industrial installations
- Mounting flexible plastic conduits in walls or panels with 6mm drill holes
- Supporting conduit runs in structural attachment and fastening projects
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen free material reduces harmful emissions in case of fire
- UV stabilization extends product life reducing replacement waste
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac warranty terms.
Available Now
The Cabac Caddy Flexible Conduit Clip with Plug 20-25mm is available now for immediate purchase. Ideal for electrical conduit securing in residential, commercial, and industrial applications.
