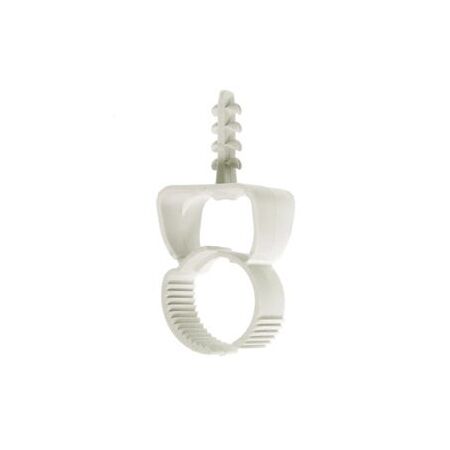

Flexible Conduit Clip with Plug For 20-25mm Halogen Grey Cabac

BRAND: CABAC
SKU: SCUSA2025
$2.50 List price: $3.30
1 EA ($2.50 per EA)
+ −
30 Days Return Electricians Unlock Trade Access
Cabac Flexible Conduit Clip with Plug For 20-25mm Halogen Free & UV Stabilized features Polypropylene construction. Suited for AS NZS 2053 conduit installations.
Technical Specifications
  • Material: Polypropylene
  • Temperature range: -10 to 85°C
  • Drill hole diameter: 6mm
  • Drill hole depth: 23mm
  • Load rating: 17Kg
  • Non-flame propagating per IEC 61386-25
  • Passed 650°C glowing/hot-wire test per EN 60695-2
  • Halogen free and UV stabilized
  • Dimensions (H x L x W): 25mm x 40mm x 30mm
  • Weight: 0.1 kg
Key Features
  • Flexible design accommodates 20mm or 25mm conduit sizes
  • Easy installation by pushing plug into a 6mm diameter hole
  • Non-flame propagating compliant with IEC 61386-25
  • Passed 650°C glowing/hot-wire test per EN 60695-2
  • Halogen free and UV-stabilized for durability
Professional Installation Requirements
  • Installation requires a 6mm diameter hole; professional installation recommended to ensure secure mounting and compliance with electrical standards.
Applications
  • Electrical conduit securing in residential, commercial, and industrial installations
  • Mounting flexible plastic conduits in walls or panels with 6mm drill holes
  • Supporting conduit runs in structural attachment and fastening projects
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Halogen free material reduces harmful emissions in case of fire
  • UV stabilization extends product life reducing replacement waste
Warranty Information

Standard manufacturer warranty applies; please refer to Cabac warranty terms.

Available Now

The Cabac Caddy Flexible Conduit Clip with Plug 20-25mm is available now for immediate purchase. Ideal for electrical conduit securing in residential, commercial, and industrial applications.

FAQ

Q: What conduit sizes can this clip support?
A: This flexible conduit clip with plug is designed for 20mm and 25mm flexible conduits.

Q: What hole size is required for installation?
A: Installation requires a 6mm diameter hole with a drill hole depth of 23mm.


A flexible conduit clip 20-25mm provides an alternative mounting solution where screw or anchor fixing is preferred.
Install with a flexible conduit anaconda LDEF liquidtight 20mm 30m grey IP67 to support secure conduit routing in electrical installations.
Pair with a flexible galvanised steel conduit 25mm where protected cable routing and conduit support are required.

Available now from SCHNAP — trusted by Australian electricians and electrical contractors.
