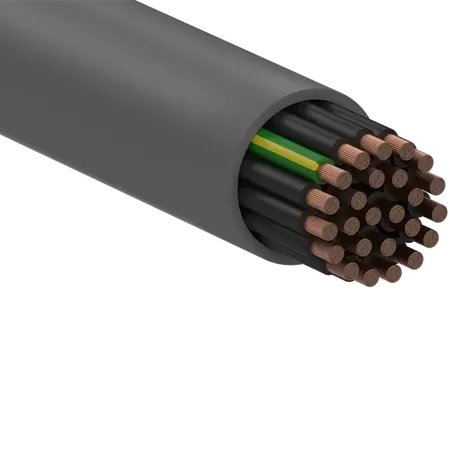

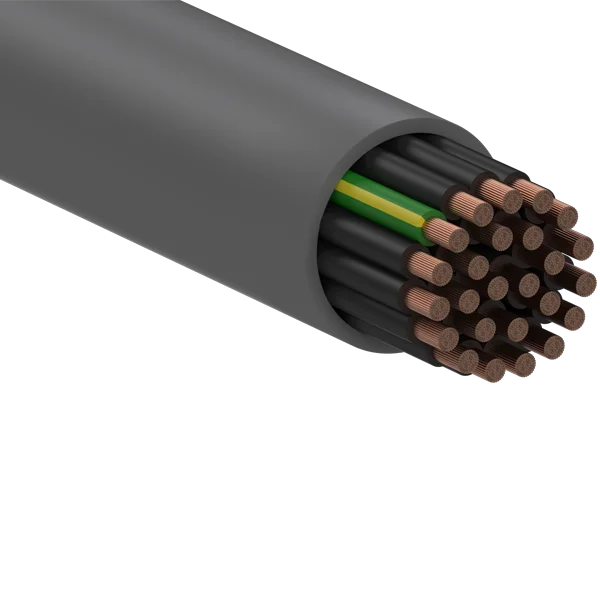

Flexible Control Cable 24C+E 0.75mm | 300/500V Rating | Grey Sheath | 500m Length | Per 10m by Eltech
Flexible control cable with 24 cores plus earth and a 0.75mm conductor size—ideal for industrial control systems and automation equipment wiring. Built for reliable performance, with a durable grey sheath and available in 10m increments from a 500m drum.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible Control Cable 24C+E 0.75mm V75 300/500V Grey
Brand: Eltech
SKU: CC125
Alternatively Known As: 24 Core Flexible Control Cable, 24C+E Control Cable, 0.75mm Control Cable, V75 Control Cable
Technical Specifications
- Conductor Size: 0.75mm²
- Number of Cores: 24 cores plus earth (24C+E)
- Voltage Rating: 300/500V
- Sheath Colour: Grey
- Drum Length: 500 meters
- Minimum Order Quantity: 10 meters increments
- Dimensions (H x L x W): 15mm x 500000mm x 15mm
- Weight: 5 kg
Key Features
- Flexible control cable with 24 cores plus earth
- Conductor size of 0.75mm²
- Voltage rating of 300/500V
- Grey outer sheath
- Available in 10m increments with 500m drum length
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety regulations.
Applications
- Industrial control systems
- Automation equipment wiring
- Power and control circuits in machinery
- Electrical installations requiring flexible control cables
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Designed for efficient electrical performance to reduce energy loss
Warranty Information
Standard manufacturer warranty applies. Please refer to Eltech for specific warranty details.
Available Now
The Eltech Flexible Control Cable 24C+E 0.75mm V75 300/500V Grey is available now for immediate purchase. Ideal for industrial and automation control wiring applications.
