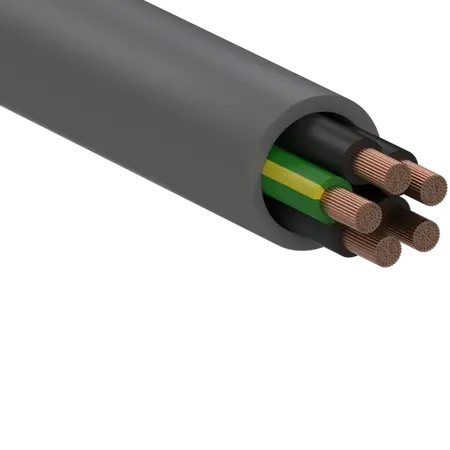

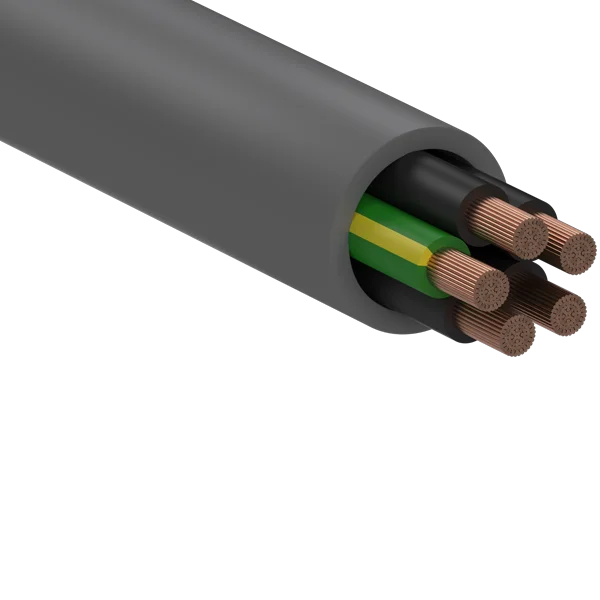

Flexible Control Cable 4C+E 0.75mm | 300/500V Rating | Grey Sheath | 500m Length | Per 10m by Eltech
Flexible control cable with 4 cores plus earth (4C+E) and 0.75mm conductor size—ideal for industrial control wiring. Built for machinery and equipment applications, with a durable grey sheath and available in 10m increments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible Control Cable 4C+E 0.75mm V75 300/500V Grey
Brand: Eltech
SKU: CC105
Alternatively Known As: Flexible Control Cable 4 Core Plus Earth 0.75mm, V75 Control Cable, 4C+E Control Cable
Technical Specifications
- Conductor Size: 0.75mm²
- Number of Cores: 4 cores plus earth (4C+E)
- Voltage Rating: 300/500V
- Sheath Colour: Grey
- Minimum Order Quantity: 10m increments
- Drum Length: 500m
- Dimensions (H x L x W): 8mm x 500000mm x 8mm
- Weight: 0.05 kg
Key Features
- Flexible control cable with 4 cores plus earth (4C+E)
- Conductor size: 0.75mm²
- Voltage rating: 300/500V
- Grey outer sheath
- Available in 10m increments with 500m drum length
Professional Installation Requirements
- Installation should be performed by a qualified electrician in accordance with AS/NZS 3000 Wiring Rules to ensure safety and compliance.
Applications
- Industrial control wiring
- Machinery and equipment wiring
- Power distribution in control panels
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Designed for efficient electrical performance to reduce energy loss
Warranty Information
Standard manufacturer warranty applies. Please refer to Eltech warranty policy for details.
Available Now
The Eltech Flexible Control Cable 4C+E 0.75mm V75 300/500V Grey is available now for immediate purchase. Ideal for industrial and machinery control wiring applications.
