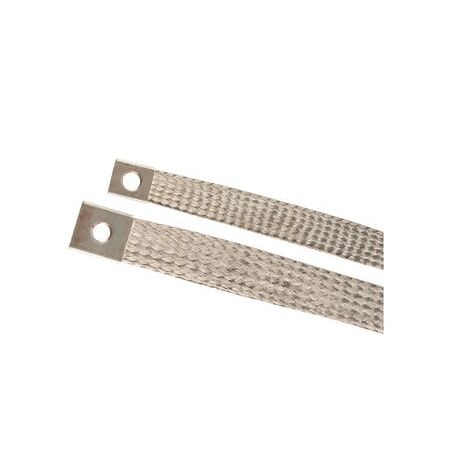

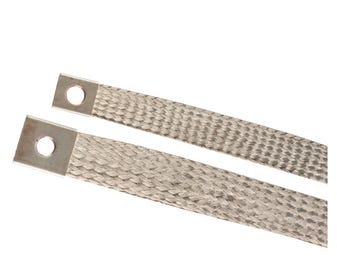

Flexible Copper Braid 100 Amp | 300mm Length | Tinned Finish & M12 Studs by Cabac
The Cabac 100 Amp Flexible Copper Braid 300mm with M12 studs is a highly flexible electrical lead used for grounding, vibration absorption, and compensating linear expansion in electrical systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 100 Amp Cu Braid 300mm Long M12 Studs.
Brand: Cabac
SKU: CAB100A-300M12
Alternatively Known As: Flexible Copper Braid 100A, Copper Grounding Braid, Electrical Copper Braid 300mm, M12 Stud Copper Braid
Technical Specifications
- Current Rating: 100 Amp
- Length: 300mm between centre of first holes
- Braid Cross Section: 22 sq. mm
- Ferrules: Seamless pure copper, rectangular shape
- Braid Finish: Tinned copper braid with plated ferrules
- Stud Size: M12
- Hole Options: Single or double hole available
- Dimensions (H x L x W): 5mm x 300mm x 22mm
- Weight: 0.1 kg
Key Features
- Extremely flexible copper braid suitable for electrical grounding
- Seamless pure copper ferrules formed into a rectangular shape on each end
- Standard braids supplied with tinned braid and plated ferrules
- Available with single or double hole options
- Custom ends and braid types available on request
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Electrical disconnects and switch handle grounds
- Absorbing vibration in electrical connections
- Compensating for linear expansion and contraction in electrical systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable copper construction reduces need for frequent replacements
- Supports reliable electrical connections, enhancing system efficiency
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The Cabac 100 Amp Flexible Copper Braid 300mm M12 Studs is available for immediate purchase, ideal for electrical grounding and vibration absorption applications.
