Flexible Copper Busbar 192mm² | Tinned | 6 Lamellas | 2m Length by NHP
Flexible copper busbar with 192mm² tinned construction and 6 lamellas—ideal for industrial and commercial power distribution. Built for enhanced conductivity and flexibility, with a 2m length for versatile installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

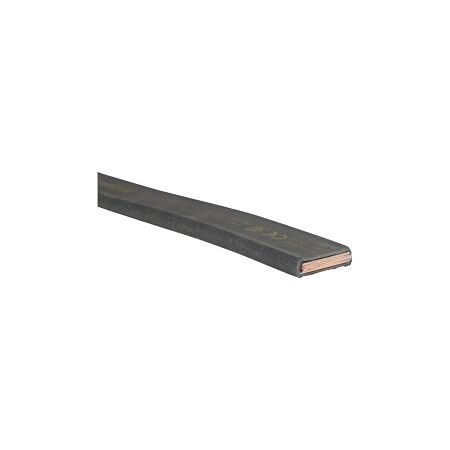

Product Name/Title: nVent ERIFLEX Flexible Copper Busbar Flexibar Tinned Copper 192mm2 6 x 32 x 1mm Length 2m
Brand: NHP
SKU: 534027
Alternatively Known As: Flexible Busbar, Copper Busbar, Tinned Copper Busbar
Technical Specifications
- Rated Operation Current: 630 A
- Allowable Current Rating for ΔT Temp Rise 40K: 640 A
- Allowable Current Rating for ΔT Temp Rise 50K: 715 A
- Allowable Current Rating for ΔT Temp Rise 60K: 783 A
- Dielectric Strength: 20 kV/mm
- Laminated: Yes
- Number of Lamellas: 6
- Length: 2000 mm
- Width: 35.6 mm
- Thickness: 9.6 mm
- Lamella Thickness: 1.8 mm
- Dimensions (H x L x W): 9.6mm x 2000mm x 35.6mm
- Weight: 1.5 kg
Key Features
- Tinned copper construction for enhanced conductivity and corrosion resistance.
- Laminated design with 6 lamellas for improved flexibility and current carrying capacity.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution systems
- Commercial: Electrical installations
- General: Any application requiring flexible busbar solutions
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation standards.
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The nVent ERIFLEX Flexible Copper Busbar Flexibar Tinned Copper 192mm2 is available now for immediate purchase. Ideal for industrial and commercial electrical installations.
