Flexible Copper Busbar 25mm2 | 928mm Length | Fire Resistant | Black & Dark Grey by NHP
Flexible copper busbar with 25mm2 conductor size and 928mm length—ideal for electrical distribution in residential and commercial buildings. Built for easy installation in tight spaces, with fire-resistant properties for enhanced safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

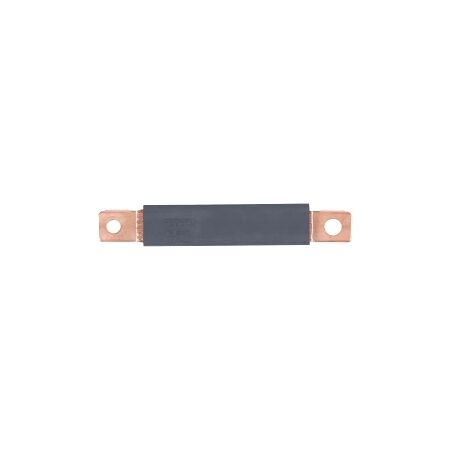

Product Name/Title: CUBIC CuFlex Flexible Copper Busbar 25mm2 Length 928mm Black and Dark Grey
Brand: NHP
SKU: FB25928
Alternatively Known As: Flexible Copper Busbar, CuFlex Busbar, Copper Busbar 25mm2
Technical Specifications
- Rated Current: 125 A
- Rated Current (Busbar to Busbar, ΔT 30K): 145-215 A
- Rated Current (Busbar to Component, ΔT 40K): 91-107 A
- Nominal Voltage: 1000 V
- Rated Short Time Withstand Current (LCC): 24 A
- Rated Insulation Voltage (Ui): 1000 V
- Max Operating Temperature: 105 °C
- Wire Conductor Size: 25 mm
- Dimensions (H x L x W): 1.5mm x 928mm x 20mm
- Weight: 1.5 kg
Key Features
- Flexible design allows for easy installation in tight spaces.
- Fire resistant properties according to UL94 V0.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Electrical distribution in residential and commercial buildings
- Industrial applications requiring flexible busbar solutions
Standards & Compliance
- Complies with relevant Australian electrical standards.
Environmental Benefits
- Durable materials reduce the need for frequent replacements.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The CUBIC CuFlex Flexible Copper Busbar 25mm2 Length 928mm is available now for immediate purchase. Ideal for electrical distribution in various applications.
