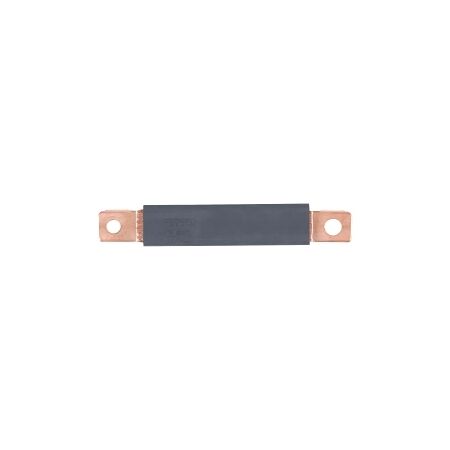

Flexible Copper Busbar 50mm2 416mm Fire-Resistant Black Dark-Grey Black NHP
The CUBIC CuFlex FB50416 is a high-performance 50mm² flexible copper busbar spanning 416mm in length, engineered specifically for commercial switchboards and industrial control panels. Featuring a 295A rated current and a 1000V nominal insulation voltage, its highly pliable construction allows electrical contractors to execute clean installations within tight enclosures where solid busbars cannot fit. The durable copper material is protected by a premium fire-resistant insulation sleeve rated to UL94 V0 standards, ensuring reliable service up to a maximum operating temperature of 105°C in strict compliance with AS/NZS 3000 safety regulations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated Current: 295 A
- Nominal Voltage: 1000 V
- Rated Short Time Withstand Current: 64 A
- Rated Insulation Voltage: 1000 V
- Max Operating Temperature: 105 °C
- Wire Conductor Size: 50 mm
- Dimensions (H x L x W): 2.5mm x 416mm x 20mm
- Weight: 1.5 kg
Key Features
- Flexible design allows for easy installation in tight spaces.
- Fire resistant properties according to UL94 V0.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Electrical distribution in commercial and industrial settings
- Power connections in switchboards and control panels
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The CUBIC CuFlex Flexible Copper Busbar 50mm2 Length 416mm is available now for immediate purchase, ideal for electrical distribution applications.
FAQ
Q: What are the short-circuit and electrical safety ratings for this flexible busbar?
A: This copper busbar features a rated short-time withstand current of 64A, a nominal voltage rating of 1000V, and a rated insulation voltage of 1000V to deliver stable performance during electrical faults.
Q: Can this product be safely used in high-temperature industrial enclosures?
A: Yes, the busbar is designed with a maximum operating temperature threshold of 105°C and features advanced fire-resistant properties that conform strictly to UL94 V0 safety standards.
