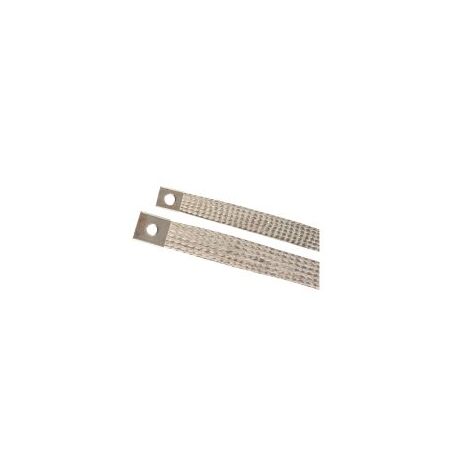

Flexible Copper Earth Braid 200A 300mm Long Two M12 Studs Cabac

BRAND: CABAC
SKU: CAB200A-300M12
$89.30 List price: $119.10
+ −
30 Days Return Electricians Unlock Trade Access
Cabac Flexible Copper Earth Braid features a 200A rating, 300mm length and two m12 studs. Ideal for earthing and bonding links on switchgear.

Alternatively Known As: Tinned Copper Earth Braid, Flexible Copper Bonding Strap, Copper Earth Link, Switchgear Earth Braid

Technical Specifications
  • Current Rating: 200A nominal
  • Material: Pure copper braid with tinned finish
  • End Terminations: Seamless pure copper ferrules with plated finish
  • Stud Configuration: Two M12 studs
  • Length: 300mm between centres of the first holes
  • Application Rating: Nominal rating varies with installation environment; indoor installations may require derating
  • Packaging Unit: 1 each
  • Dimensions (H x L x W): 5mm x 300mm x 20mm
  • Weight: 0.2 kg
Key Features
  • Flexible braided construction for electrical earthing and bonding
  • Two M12 stud connections for switchgear and equipment links
  • Tinned copper finish for improved corrosion resistance
  • Seamless copper ferrules formed into rectangular end terminals
  • Helps absorb vibration and accommodate thermal expansion and contraction
  • Suitable for switchgear, disconnects and switch handle grounding applications
Professional Installation Requirements
  • Installation should be performed by a licensed electrician in accordance with applicable electrical installation requirements, including AS/NZS 3000. Confirm the braid rating and connection method are suitable for the prospective fault current and installation environment.
Applications
  • Earthing and bonding links on switchgear
  • Switchboard and electrical enclosure bonding
  • Disconnect and switch handle grounding
  • Flexible connections subject to vibration
  • Connections requiring allowance for thermal expansion and contraction
Standards & Compliance
  • AS/NZS 3000:2018 — applicable earthing and equipotential bonding installation requirements
Environmental Benefits
  • Copper is highly recyclable and can be recovered at the end of the product's service life
  • Flexible construction can reduce mechanical stress and extend connection service life
  • Tinned copper finish helps resist corrosion, reducing premature replacement and material waste
Warranty Information

CABAC terms do not specify a fixed warranty period for this product. Warranty claims are subject to the applicable manufacturer's warranty and non-excludable rights under Australian Consumer Law.

Available Now

Available through CABAC and authorised Australian electrical distributors; confirm current stock and lead time before ordering.
