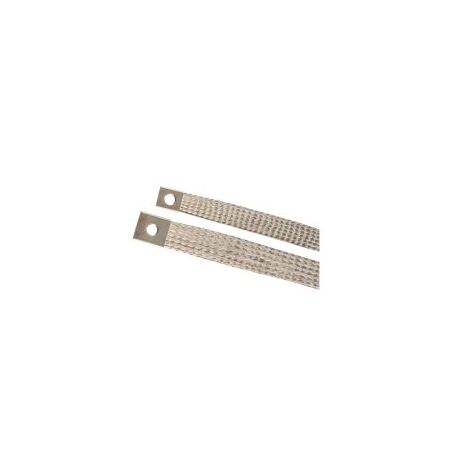

Flexible Copper Earth Braid 300A 1m Long Blank Palms Cabac
Cabac Flexible Copper Earth Braid features a 300A rating, 1m length and blank palms. Ideal for earthing and bonding links on switchgear.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 300A Copper Braid, Flexible Earth Braid, Copper Bonding Braid, Switchgear Earth Link
Technical Specifications
- Current Rating: 300A nominal
- Length: 1000 mm between palm centres
- End Configuration: Blank palms
- Conductor Material: Copper
- Braid Construction: 2 x 25 mm² copper braids
- Ferrules: Seamless copper ferrules formed into rectangular palms
- Flexibility: Designed to accommodate movement, expansion, contraction and vibration
- Rating Note: Nominal current rating; indoor applications may require derating
- Dimensions (H x L x W): 8mm x 1000mm x 50mm
- Weight: 0.55 kg
Key Features
- Flexible copper braid for earthing and bonding applications
- 300A nominal current rating
- 1 metre length between the centres of the end palms
- Blank palms allow drilling or custom termination to suit the installation
- Suitable for switchgear disconnects, switch handles and enclosure bonding
- Copper construction provides high conductivity and corrosion-resistant performance
- Can absorb vibration and accommodate linear expansion or contraction
Professional Installation Requirements
- Installation and termination should be performed by a licensed electrical contractor in accordance with AS/NZS 3000 and the equipment manufacturer's requirements. Confirm the required current rating, fault-duty performance, termination method and any applicable derating before installation.
Applications
- Switchgear earthing and bonding links
- Switchboard and electrical enclosure bonding
- Disconnect and switch-handle grounding
- Flexible earth connections between moving or vibrating components
- Industrial electrical equipment and distribution assemblies
Standards & Compliance
- AS/NZS 3000:2018 Wiring Rules, Section 5, where used as an earthing or bonding conductor
Environmental Benefits
- Copper is highly recyclable at end of service life
- Flexible construction can extend service life by reducing stress from vibration and movement
- Durable copper construction can reduce replacement frequency and material waste
Warranty Information
Cabac terms provide a one-year warranty period from the date of supply for defective goods, subject to correct installation, use in accordance with specifications and Australian Consumer Law. Misuse, incorrect installation and use outside specifications are excluded.
Available Now
Available through CABAC and authorised Australian electrical distributors; stock availability should be confirmed with the distributor.
