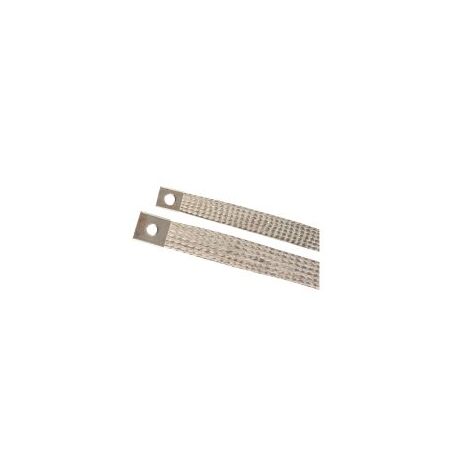

Flexible Copper Earth Braid 300A 1m Long Two M12 Studs Cabac
Cabac Flexible Copper Earth Braid features a 300A rating, 1m length and two m12 studs. Ideal for earthing and bonding links on switchgear.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 300A Copper Braid, Flexible Copper Earth Braid, Copper Earthing Link, Switchgear Earth Bond
Technical Specifications
- Current Rating: 300A nominal
- Length: 1,000 mm between hole centres
- Stud Size: 2 x 12 mm / M12
- Material: Copper braid with copper ferrules
- Ferrule Finish: Plated ferrules
- Braid Finish: Tinned copper braid
- Application Rating Note: Nominal rating may require derating according to installation environment
- Approximate Braid Profile: 40 mm wide x 5 mm thick, based on comparable 300A copper braid products
- Dimensions (H x L x W): 5mm x 1000mm x 40mm
- Weight: 0.75 kg
Key Features
- Flexible copper braid for earthing and bonding links
- Two M12 stud holes for switchgear and electrical equipment connections
- 300A nominal current rating
- Suitable for disconnects, switch handle grounds and switchgear bonding
- Absorbs vibration and accommodates linear expansion and contraction
- Seamless rectangular copper ferrules at each end
- Tinned braid and plated ferrules provide improved surface protection
Professional Installation Requirements
- Installation should be performed by a licensed electrician in accordance with the applicable electrical installation, earthing and switchgear requirements. Confirm current-carrying capacity, fault-current withstand and any required environmental derating before installation.
Applications
- Switchgear earthing and bonding
- Switch handle grounding
- Disconnect and isolator bonding links
- Electrical panel and enclosure bonding
- Connections subject to vibration or thermal movement
Standards & Compliance
- AS/NZS 3000:2018 – applicable earthing and equipotential bonding requirements for electrical installations
- AS/NZS 61439 series – applicable where installed as part of a low-voltage switchgear and controlgear assembly
Environmental Benefits
- Copper components are highly recyclable at end of service life
- Flexible construction can accommodate vibration and movement, helping reduce connection fatigue and replacement waste
- Durable copper braid and plated terminations support extended service life
Warranty Information
Cabac products are generally covered by a 12-month warranty from the date of purchase unless a different product-specific warranty is stated. Australian Consumer Law guarantees also apply.
Available Now
Available through CABAC and authorised Australian electrical distributors; confirm current stock and lead time with the distributor.
